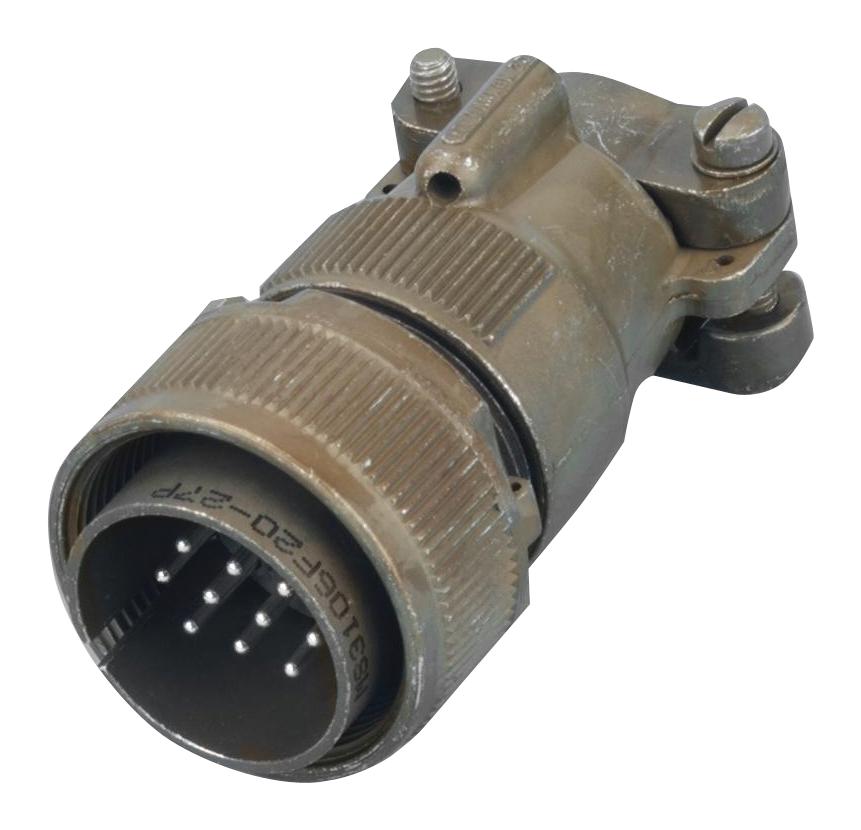

ITT CANNON MS3106F2029PW Circular Connector
The MS3106F20-29PW is a circular MIL-DTL 5015 connector featuring a straight shell style plug with threaded coupling, designed for reliable military-grade connections. It has a shell size of 20 and accommodates 17 contacts of size 16 with solder cup contact types, plated in hard silver for durability and corrosion resistance. The connector is rated for high performance with IP65 protection, salt spray resistance for 500 hours, and a mating cycle life of 500 loads. Constructed with an aluminium alloy shell, neoprene insulator, and copper alloy contacts, it is suitable for demanding industrial and military applications.
ITT CANNON MS3106F2029PW Circular Connector Specifications:
- Shell Size: 20
- Contact Arrangement: 20-29
- Number of Contacts: 17 size 16
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Shell Material: Aluminium alloy
- Shell Coating: Olive drab chromate over cadmium
- Insulator Material: Neoprene
- Insulator Rotation: 80°
- Contact Resistance: aan
- Operating Voltage: >50V (use in accordance with DIN VDE 410 and IEC 60364-4-41)
- Insulator Resistance: >1000 MΩ (VG95319, VG95210)
- Test Voltage: 1600 Vrms
- Air and Creepage Paths: Min 1.4 mm
- Ambient Temperature Range: -55°C to +125°C
- IP Rating: IP65
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Separation Force per Contact: 1.0N
- Coupling Torque: Closing max 9 Nm, opening min 0.7 Nm
- Contact Retention: 35N
- Wire Stripping Length: 6.2 mm
