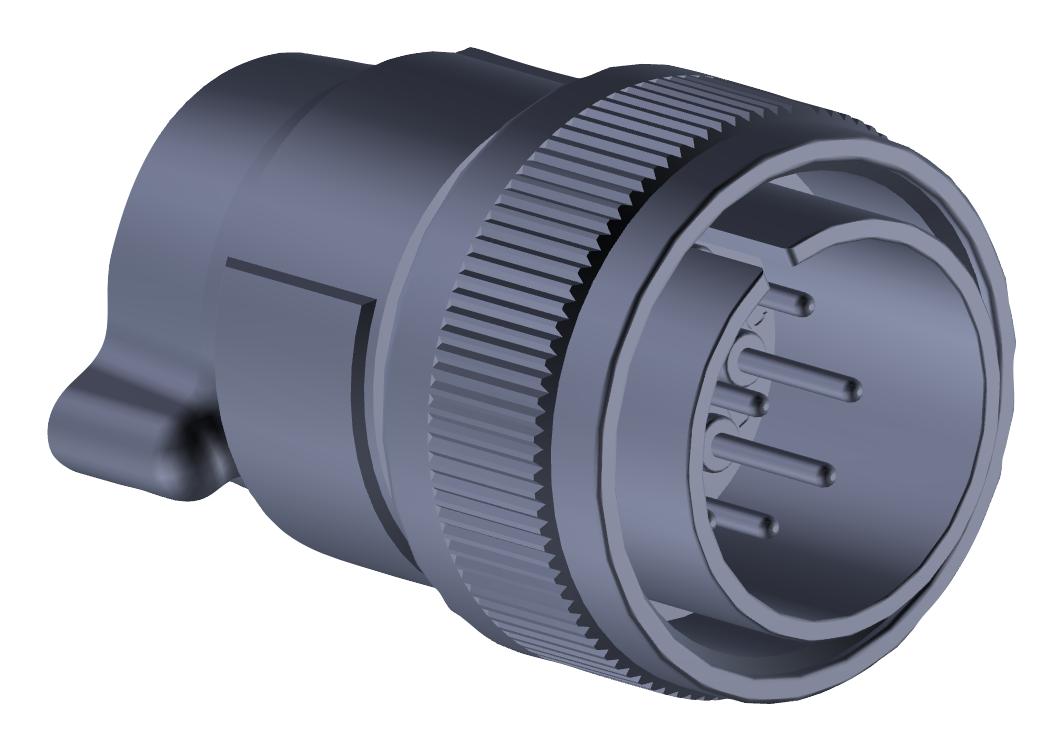

ITT CANNON MS3106R207P Industrial Circular Connector
The MS3106R20-7P is a high-quality circular connector featuring a threaded coupling with shell size 20 and 8 solder cup contacts rated for operating voltages above 50V. Crafted from durable aluminium alloy with olive drab chromate coating, it offers IP65 sealing, salt spray resistance for 500 hours, and a rated operating temperature of -55°C to +125°C. Suitable for demanding industrial environments, it ensures secure mating with 500 mating cycles, robust contact retention, and specified torque. Ideal for aerospace, military, and automation applications requiring reliable, weather-resistant connections.
ITT CANNON MS3106R207P Industrial Circular Connector Specifications:
- Shell Material: Aluminium alloy with olive drab chromate coating
- Shell Size: 20
- Contact Arrangement: 8 contacts size 16
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Operating Voltage: >50V in line with DIN VDE 410, IEC 60364-4-41
- Insulator Resistance: > 1000 MO according to VG95319, VG95210
- Test Voltage: 1600 Vrms
- Insulator Material: Neoprene
- Ambient Temperature: -55°C to +125°C
- IP Rating: IP65 according to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500 minimum
- Coupling Torque: Closing 9 Nm max, Opening 0.7 Nm min
- Cable Stripping: 6.2 mm
- Air and Creepage Path: 1.4 mm
Buy the Buy Cannon Circular Connector Part Number MS3106R20-7P Online
Purchase the Cannon MS3106R20-7P circular connector today online for reliable, durable connections suitable for harsh environments. With IP65 sealing, salt spray resistance, and high mating cycle durability, this connector ensures secure, long-lasting performance in industrial, military, and aerospace applications. Its robust aluminium alloy shell, solder cup contacts, and excellent resistance to humidity and temperature extremes make it ideal for mission-critical setups. Get yours now and experience dependable quality that meets international standards for safety and durability.
Order your Cannon Series MS3106R20-7P today and ensure your industrial or aerospace projects benefit from dependable, weather-resistant connections.
Frequently Asked Questions
Where can I buy ITT CANNON MS3106R207P?
You can click on the BUY or RFQ button to purchase MS3106R207P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3106R207P?
You can download the MS3106R207P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3106R207P?
ITT CANNON
