ITT CANNON MS3106R2411P Circular Connector
The MS3106R24-11P is a high-reliability circular connector designed for industrial and military applications. It features a shell size of 24 with a straight shell style plug and short light-weight endbell without cable clamp. Equipped with 3 solder cup contacts in size 8 and 6 contacts in size 12, plated in hard silver for durability. This connector supports a voltage rating exceeding 50V with compliance to DIN VDE standards and offers IP65 sealing for outdoor use. It withstands 500 salt spray hours, has a 500 mating cycle life, and features aluminium alloy shell with olive drab chromate coating.
ITT CANNON MS3106R2411P Circular Connector Specifications:
- Shell Size: 24
- Shell Material: Aluminium alloy
- Shell Plating: Olive drab chromate coating over cadmium plating
- Contact Arrangement: 24-11
- Number of Contacts: 3 size 8, 6 size 12
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Operating Voltage: Greater than 50V (compliant with DIN VDE part 410, IEC 60364-4-41)
- Contact Resistance: 3mΩ (Size 25/12), 1mΩ (Size 60/100/8)
- Insulator Resistance: >1000 MΩ
- Test Voltage: 1600 Vrms
- Air and Creepage Paths: Min 1.4mm
- Ambient Temperature Range: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Separation Force per Contact: 1.5N (Size 25/12), 3N (Size 60/100/8)
- Coupling Torque: Max 14 Nm (closing), Min 0.8 Nm (opening)
- Contact Retention: 55N (Size 25/12), 80N (Size 60/100/8)
- Wire Stripping: 6.2 mm (Size 25/42), 11.8 mm (Size 60/400/8)
- Connector Material: Copper alloy
- Sealing and Insulation Material: Neoprene

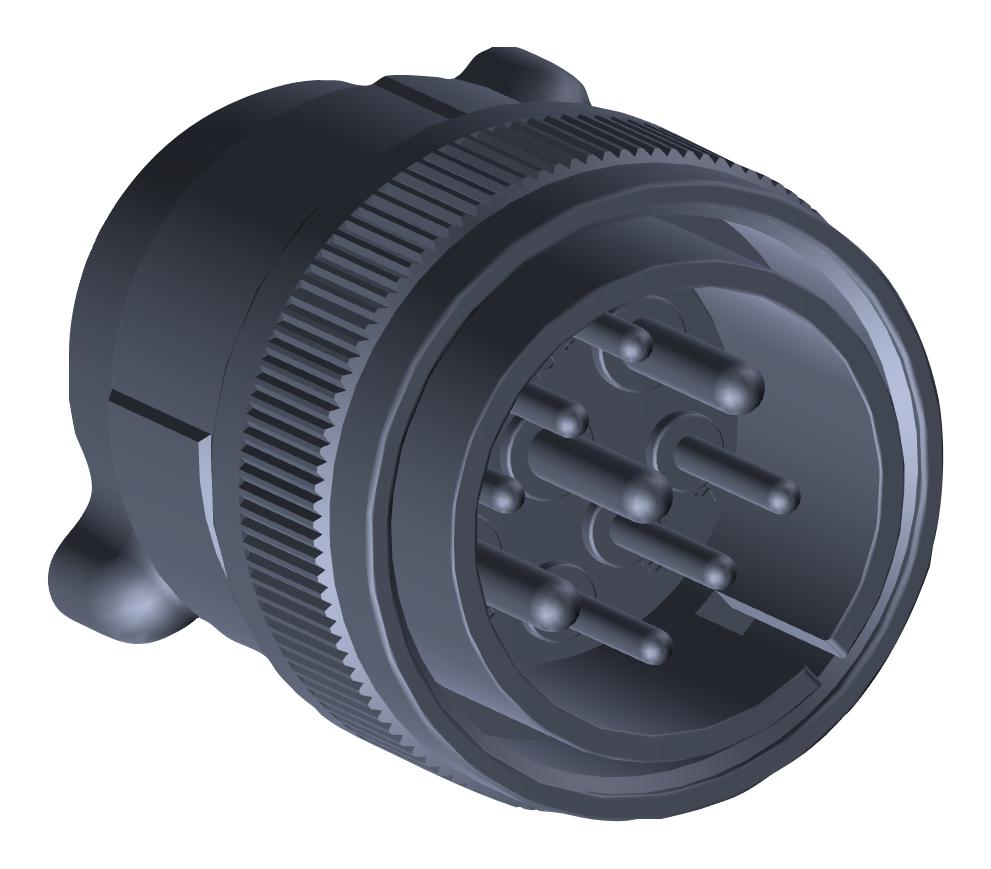

Buy the Buy Cannon Circular Connector Part Number MS3106R24-11P Online
Discover the convenience of purchasing the Cannon MS3106R24-11P circular connector online. This durable connector features a robust aluminium shell with olive drab chromate coating, solder cup contacts plated in hard silver, and IP65 sealing for exceptional outdoor performance. Designed for demanding industrial and military applications, it withstands 500 salt spray hours and offers 500 mating cycles. Ideal for secure, reliable connections in harsh environments, it’s available now to ensure your projects meet the highest standards of quality and durability.
Order your Cannon Series MS3106R24-11P circular connector today and ensure reliable connection with IP65 sealing, corrosion resistance, and high durability for demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3106R2411P?
You can click on the BUY or RFQ button to purchase MS3106R2411P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3106R2411P?
You can download the MS3106R2411P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3106R2411P?
ITT CANNON
