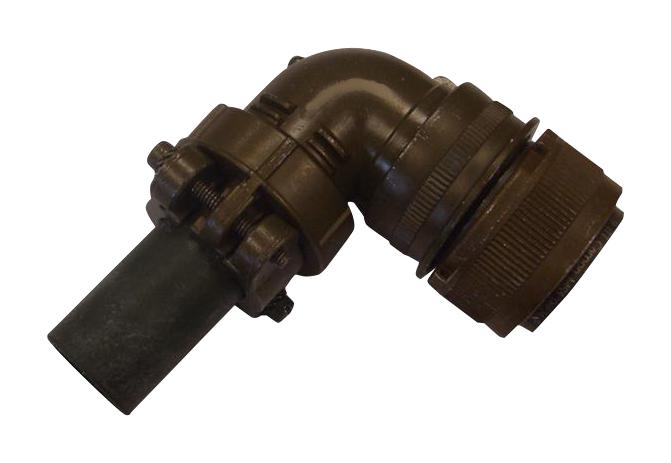

ITT CANNON MS3108E222P Circular Connector
The circular connector features a shell size 22 with a 90° threaded coupling shell style and endbell with clamp and bushing. It has a gender pin configuration, 22-2 contact arrangement with 3 solder cup contacts plated in hard silver. Made from aluminum alloy with olive drab chromate coating over cadmium plating, it offers IP65 protection, salt spray resistance for 500 hours, and withstands ambient temperatures from -55°C to +125°C. Suitable for applications requiring 500 mating cycles, securing connections reliably in demanding environments.
ITT CANNON MS3108E222P Circular Connector Specifications:
- Shell Size: 22
- Contact Arrangement: 22-2
- Number of Contacts: 3 (Size 8)
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Shell Material: Aluminum alloy
- Shell Plating: Olive drab chromate over cadmium
- Insulator Material: Neoprene
- Operating Voltage: Suitable for voltages >50V as per DIN VDE 410, IEC 60364-4-41
- Insulator Resistance: > 1000 MO
- Test Voltage: 2500 Vrms
- Air and Creepage Paths: Minimum 2.8 mm
- Ambient Temperature: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Force per Contact: 3.0 N
- Coupling Torque: Max 11 Nm (closing), Min 0.8 Nm (opening)
- Contact Retention: 80 N
- Wire Stripping: 11.8 mm
- Shielding: No
- Sealing and Safety: Meets VG95319 and VG95210 standards
Buy the Buy Cannon Circular Connector Part Number MS3108E22-2P Online
Secure your industrial connections today with the Cannon Circular Connector. Designed for demanding environments, it offers IP65 protection, salt spray resistance for 500 hours, and withstands temperatures from -55°C to +125°C. Featuring a robust aluminum alloy shell with olive drab chromate coating and 3 solder cup contacts plated in hard silver, this connector provides durability, reliability, and efficient assembly for various industrial, automation, and control applications. Purchase online now for quick, trusted delivery.
Buy Cannon MS3108E22-2P now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3108E222P?
You can click on the BUY or RFQ button to purchase MS3108E222P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3108E222P?
You can download the MS3108E222P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3108E222P?
ITT CANNON
