ITT CANNON MS3108R16S1P Circular Connector
The MS3108R16S-1P is a high-quality circular connector designed for industrial and automation applications. It features a shell size 16S with a 168-1 contact arrangement, solder cup contacts with hard silver plating, and a lightweight, short-endbell shell style. This connector provides IP65 protection, salt spray resistance for 500 hours, and operating temperatures from -55°C to +125°C. It supports 500 mating cycles, durable aluminum alloy shell with olive drab chromate coating, and robust copper alloy contacts, making it ideal for secure, reliable electrical connections in harsh environments.
ITT CANNON MS3108R16S1P Circular Connector Specifications:
- Shell Size: 16S
- Contact Arrangement: 168-1
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Shell Material: Aluminum alloy
- Shell Coating: Olive drab chromate over cadmium
- Insulator Material: Neoprene
- Operating Temperature: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500 min
- Coupling Torque: Closing 5.5 Nm max, Opening 0.46 Nm min
- Wire Stripping Length: 6.2 mm
- Test Voltage: 1600 Vrms
- Contact Resistance: ≥50 MO at standard conditions
- Separation Force per Contact: 1.0 N
- Air and Creepage Path: 1.4 mm

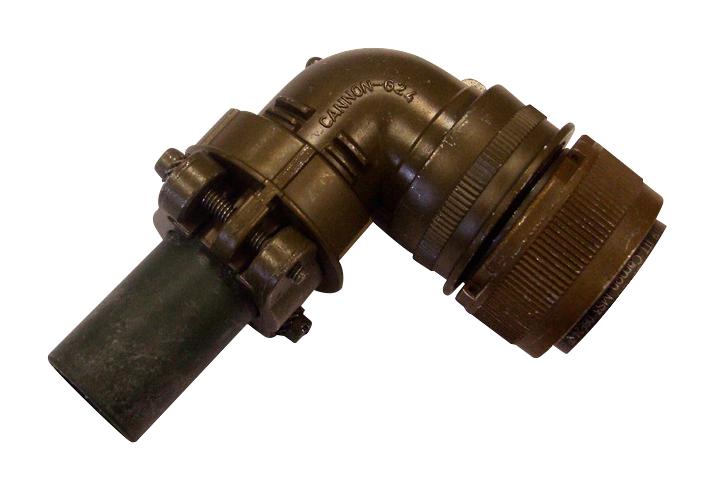

Buy the Buy Cannon Circular Connector Part Number MS3108R16S-1P Online
Secure your electrical projects with the Cannon Circular Connector MS3108R16S-1P that offers IP65 protection, salt spray resistance, and operating temperature from -55°C to +125°C. Designed with a durable aluminum alloy shell coated with olive drab chromate over cadmium, this connector withstands harsh environments. Its solder cup contacts are hard silver plated for longevity, supporting up to 500 mating cycles. Easy to install with a wire stripping length of 6.2 mm, it is ideal for industrial automation, control systems, and heavy-duty electrical applications needing robust and reliable connections.
Order your Cannon Series MS3108R16S-1P industrial connector today and ensure your electrical systems are protected with reliable, corrosion-resistant connections.
Frequently Asked Questions
Where can I buy ITT CANNON MS3108R16S1P?
You can click on the BUY or RFQ button to purchase MS3108R16S1P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3108R16S1P?
You can download the MS3108R16S1P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3108R16S1P?
ITT CANNON
