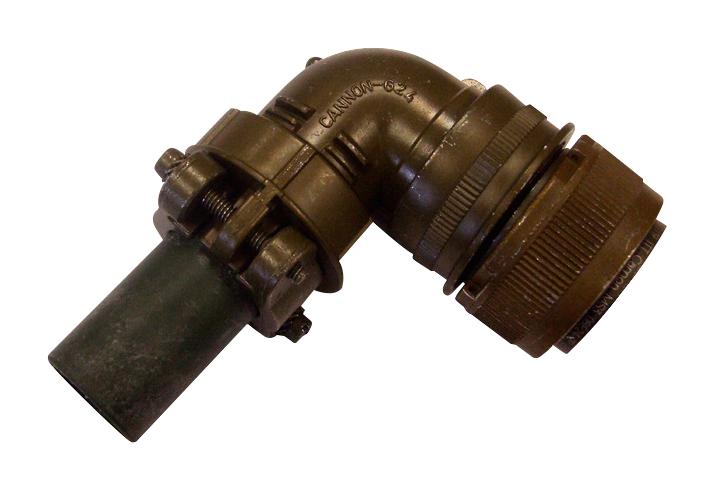

ITT CANNON MS3108R1810P Industrial Circular Connector
The MS3108R18-10P is a high-performance circular connector with threaded coupling, designed for industrial and military applications. Featuring a shell size of 18 and a contact arrangement of 18-10 with four solder cup contacts, it offers excellent electrical performance with contact resistance of 3 milliohms. The connector's shell is made from durable aluminium alloy with olive drab chromate over cadmium plating, ensuring corrosion resistance. It operates within -55°C to +125°C, supports 500 mating cycles, and meets IP65 standards for dust and water resistance, making it suitable for harsh environments.
ITT CANNON MS3108R1810P Industrial Circular Connector Specifications:
- Shell Size: 18
- Contact Arrangement: 18-10
- Number of contacts: 4
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Shell Material: Aluminium alloy
- Shell Coating: Olive drab chromate over cadmium
- Insulator Material: Neoprene
- Operating Temperature: -55°C to +125°C
- Ingress Protection: IP65
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Coupling Torque: 8 Nm max (closing), 0.58 Nm min (opening)
- Contact Retention: 55N
- Test Voltage: 1600 Vrms
- Insulator Resistance: > 1000 MO
- Air and Creepage Paths: 4.4mm
Buy the Cannon MS3108R18-10P – Reliable Circular Connector for Industrial Applications
Experience the reliability and durability of the Cannon MS3108R18-10P circular connector, ideal for industrial and military applications demanding robust design. This connector features a compact aluminium shell with olive drab chromate coating, four solder cup contacts with hard silver finish, and IP65 protection, suitable for harsh environments. Rated for -55°C to +125°C, supporting 500 mating cycles, it ensures long-lasting performance. Flexibly designed with a threaded coupling system, this high-quality connector guarantees secure and dependable connections in challenging operational conditions.
Get Cannon MS3108R18-10P today—built for precision, durability, and harsh environment performance.
Frequently Asked Questions
Where can I buy ITT CANNON MS3108R1810P?
You can click on the BUY or RFQ button to purchase MS3108R1810P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3108R1810P?
You can download the MS3108R1810P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3108R1810P?
ITT CANNON
