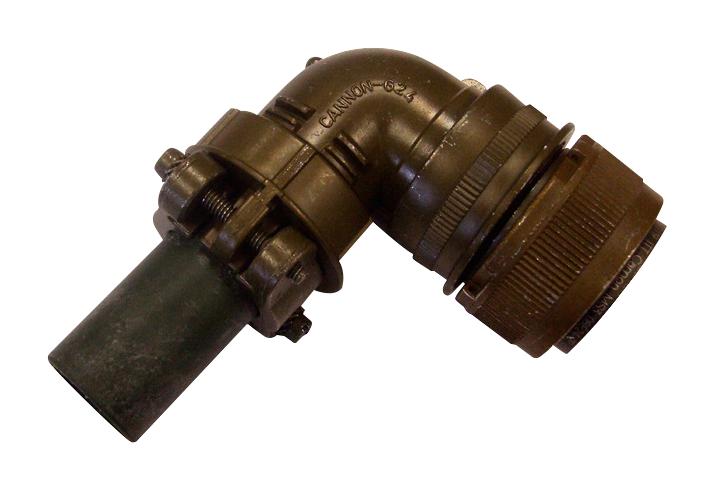

ITT CANNON MS3108R2029P Industrial Circular Connector
The MS3108R20-29P is a rugged circular connector featuring 20 contacts with solder cup termination, designed for reliable connections in industrial and military applications. It has a shell size 20 with a threaded coupling mechanism, IP65 sealing for dust and water resistance, and is constructed from aluminum alloy with olive drab chromate over cadmium plating. With a voltage rating exceeding 50V, it withstands harsh environments, offers 500 mating cycles, and is salt spray resistant, ideal for demanding industrial environments and aerospace use.
ITT CANNON MS3108R2029P Industrial Circular Connector Specifications:
- Shell Size: 20
- Contact Arrangement: 20-29
- Number of contacts: 17 contacts size 16
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Shell Material: Aluminum alloy
- Shell Plating: Olive drab chromate coating over cadmium
- Electrical Rating: Suitable for voltages >50V in accordance with DIN VDE and IEC standards
- Insulator Resistance: > 1000 MΩ as per VG95319 and VG95210
- Test Voltage: 1600 Vrms
- Ambient Temperature: -55°C to +125°C
- IP Rating: IP65 according to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: Minimum 500
- Coupling Torque (Closing): 9 Nm max, (Opening): 0.7 Nm min
- Minimum Air and Creepage Path: 1.4mm
- Wire Stripping Length: 6.2 mm
- Separation Force per Contact: 1.0 N
- Gage: VG95234, part 4
- Sealing Material: Neoprene
- Operating Temperature Range: -55°C to +125°C
Buy the Cannon Series MIL-DTL 5015 Circular Connector: MS3108R20-29P
Explore the Cannon MS3108R20-29P industrial circular connector available online. Featuring 20 contacts, solder cup terminals, and durable aluminum alloy shell with olive drab chromate coating, it offers IP65 sealing, salt spray resistance, and 500 mating cycles. Designed for harsh industrial, military, and aerospace environments, this connector ensures reliable performance with a voltage rating above 50V, excellent insulator resistance, and a wide operating temperature range from -55°C to +125°C. Purchase now for dependable connectivity in demanding conditions.
Buy Cannon MS3108R20-29P durable circular connector now and experience unmatched reliability and performance in demanding industrial applications.
Frequently Asked Questions
Where can I buy ITT CANNON MS3108R2029P?
You can click on the BUY or RFQ button to purchase MS3108R2029P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3108R2029P?
You can download the MS3108R2029P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3108R2029P?
ITT CANNON
