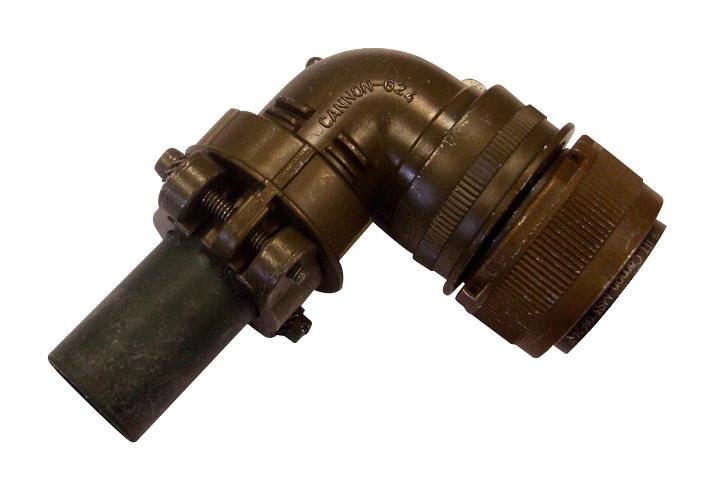

ITT CANNON MS3108R2811S Circular Connector
The MS3108R28-11S is a durable circular connector featuring a threaded coupling, shell size 28, and a 90° endbell style. It provides 4 solder cup contacts with hard silver plating, designed for MIL-DTL 5015 standards. Suitable for demanding environments, it offers IP65 protection, salt spray resistance for 500 hours, and a temperature range from -55°C to +125°C. The connector supports 500 mating cycles, with a locking torque of 17 Nm, ensuring secure connections in industrial and military applications. Made from aluminum alloy with olive drab chromate coating, this connector guarantees longevity and reliable performance.
ITT CANNON MS3108R2811S Circular Connector Specifications:
- Shell Size: 28, Threaded coupling, 90° endbell style
- Contacts: 4 solder cup, size 12 with silver plating, 18 size 16
- Contact Resistance: 3 mo, operating voltage >50V per DIN VDE and IEC standards
- Insulator Resistance: >1000 MO, test voltage 1600 Vrms
- Ambient Temperature: -55°C to +125°C
- Protection Rating: IP65 according to DIN 40050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500 minimum
- Coupling Torque: Max 17 Nm, Min 0.92 Nm for opening
- Contact Retention: 35N for sizes 15/15S/16/16S and 55N for size 25/12
- Shell Material: Aluminum alloy with olive drab chromate coating
- Insulator & Grommet Material: Neoprene
- Wire Stripping Size: 6.2 mm for sizes 25/12
- Dimensions, gage, and assembly details available externally
- Designed to withstand harsh environments with scrupulous sealing and corrosion resistance
Buy the Buy Cannon Circular Connector Part Number MS3108R28-11S Online
Purchase the Cannon MS3108R28-11S today and benefit from a rugged, MIL-DTL 5015 compliant circular connector. Designed for industrial and military environments, it features a threaded coupling, IP65 sealing, and high salt spray resistance for long-lasting durability. Its efficient solder cup contacts ensure reliable electrical connections, while the robust shell made from aluminum alloy offers excellent corrosion resistance. Easy to install with a locking torque of 17 Nm, this connector guarantees secure, maintenance-free performance in demanding applications globally. Buy online now for dependable, high-quality industrial connectors.
Get Cannon MS3108R28-11S today—built for secure, reliable connections with high IP65 protection and salt spray resistance.
