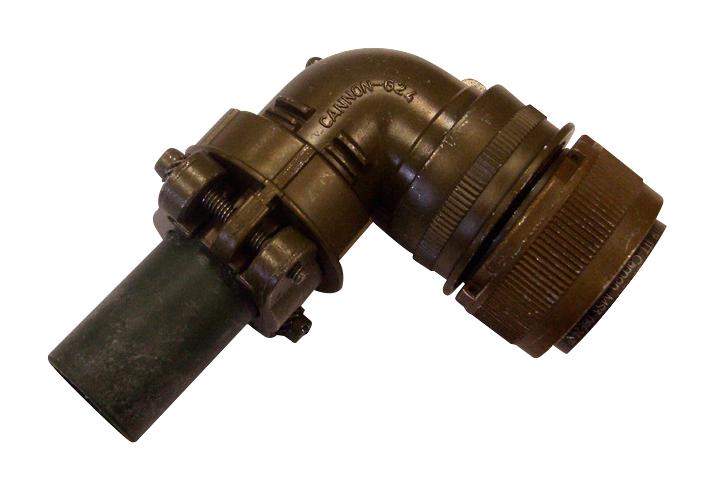

ITT CANNON MS3108R2812S industrial circular connector
The MS3108R28-12S is a high-quality circular connector designed for industrial applications with a threaded coupling mechanism. This shell style 90° plug features 26 solder cup contacts made of copper alloy with hard silver plating, ensuring reliable electrical connections. It conforms to IP65 standards for dust and water resistance, and provides robust performance with 500 mating cycles, a salt spray resistance of 500 hours, and operating temperature range from -55°C to +125°C. Suitable for harsh environments, it is ideal for aerospace, military, and industrial control systems, offering durability and secure connections.
ITT CANNON MS3108R2812S industrial circular connector Specifications:
- Shell Material: Aluminium alloy with olive drab chromate coating over cadmium plating
- Contact Material: Copper alloy with hard silver plating
- Number of Contacts: 26 (size 16, 28-12 arrangement)
- Contact Type: Solder Cup
- Operating Voltage: greater than 50V in accordance with DIN VDE 410 and IEC 60364-4-41
- Insulator Resistance: > 1000 MO according to VG95319 and VG95210
- Test Voltage: 1600 Vrms
- Air and Creepage Paths: 1.4mm minimum
- Ambient Temperature Range: -55°C to +125°C
- Ingress Protection: IP65 conforming to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Coupling Torque: Closing max 17 Nm, Opening min 0.92 Nm
- Shell Size: 28
- Shell Style: 90° plug, short lightweight endbell without cable clamp
- Threaded coupling
- Gasket Material: Neoprene
- Wire Stripping Length: 6.2 mm
Buy the Cannon MS3108R28-12S – Reliable Circular Connector for Industrial Applications
Purchase the Cannon MS3108R28-12S circular connector online today for your industrial or aerospace projects. This rugged, IP65-rated connector offers 26 solder cup contacts, robust aluminum shell, and excellent resistance to environmental elements. With a maximum of 500 mating cycles and salt spray resistance for 500 hours, it ensures long-term durability. Its operating temperature from -55°C to +125°C makes it suitable for extreme conditions. Reliable and easy to install, this connector is ideal for demanding applications needing secure, quality electrical connections.
Order your Cannon MS3108R28-12S today and enhance your industrial and harsh environment projects with this durable, high-performance circular connector.
Frequently Asked Questions
Where can I buy ITT CANNON MS3108R2812S?
You can click on the BUY or RFQ button to purchase MS3108R2812S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3108R2812S?
You can download the MS3108R2812S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3108R2812S?
ITT CANNON
