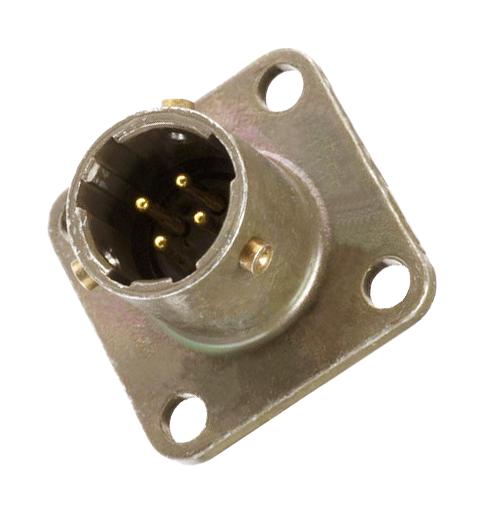

ITT CANNON MS3112E1419P MIL-DTL-26482 Receptacle
The MS3112E14-19P connector from ITT Cannon is a MIL-DTL-26482 Series I box mount receptacle designed for harsh environments. Capable of withstanding extreme shock, vibration, and corrosion, it meets military standards such as 48-hour salt spray and MIL-STD-1344 method 1001. Its self-locking three-point bayonet coupling ensures quick, reliable mating, complemented by five keyways for proper alignment. Suitable for critical applications, it operates from -55°C to +125°C, with an insulation resistance of 5000 MΩ, and withstands up to 500 mating cycles at 1000VAC. Constructed with a durable aluminum alloy body, Polychlorprene insulator, grommet, and gold-plated copper alloy solder pins, it provides high contact density and environmental sealing.
ITT CANNON MS3112E1419P MIL-DTL-26482 Receptacle Specifications:
- Contact Count: 19 contacts
- Operating Temperature Range: -55°C to +125°C
- Insulation Resistance: 5000 MΩ at 25°C
- Voltage Rating: 1000 VAC
- Durability: Up to 500 mating cycles
- Standard Compliance: MIL-DTL-26482, VG95328, MIL-STD-1344
- Construction: Aluminum alloy body with olive drab chromate over cadmium plating
- Contacts: Copper alloy solder pins with gold plating
- Sealing: Environmentally sealed with grommet and Polychlorprene insulator
- Coupling System: Self-locking three-point bayonet with five keyways
- Shock & Vibration: Meets military standards for shock and vibration resistance
- Environmental Resistance: Salt spray tested for 48 hours
Buy the Buy Amphenol MIL-DTL-26482 Series 1 Connector Part Number MS3112E14-19P Online
Secure your projects with the highly reliable Amphenol MIL-DTL-26482 Series 1 connector MS3112E14-19P. Designed to withstand harsh conditions, it features environmentally sealed construction, a quick bayonet coupling system, and a rugged aluminum body. Perfect for military, aerospace, and industrial uses, this connector offers up to 500 mating cycles, voltage up to 1000VAC, and an operating temperature range from -55°C to +125°C. Easy to install with gold-plated high-density contacts, it guarantees durable and secure connections in critical environments.
Order your Amphenol MS3112E14-19P environmental sealed connector today and ensure reliable, quick-mating connections for demanding military and industrial applications.
Frequently Asked Questions
Where can I buy ITT CANNON MS3112E1419P?
You can click on the BUY or RFQ button to purchase MS3112E1419P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3112E1419P?
You can download the MS3112E1419P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3112E1419P?
ITT CANNON
