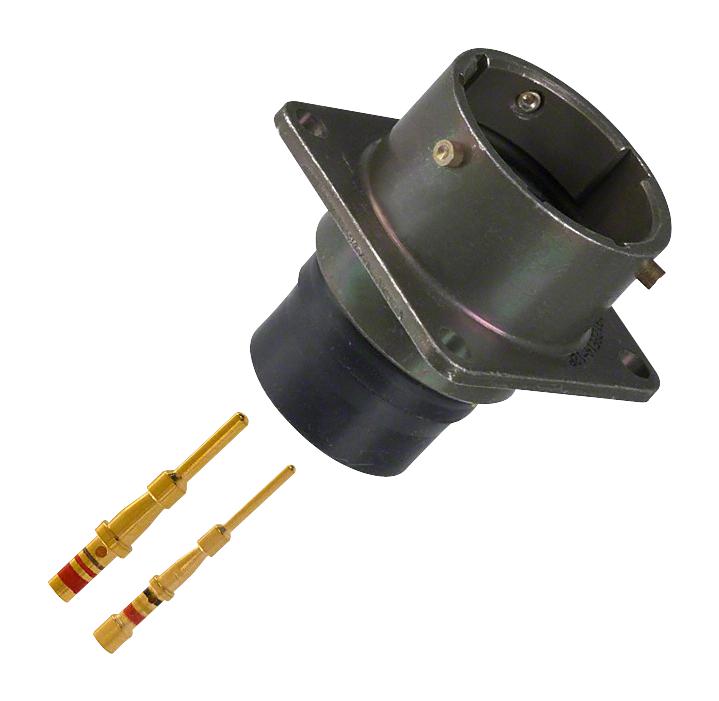

ITT CANNON MS3112E2041P MIL-DTL-26482 Receptacle
The MS3112E20-41P from ITT Cannon is a MIL-DTL-26482 Series I box mount receptacle with 41 contacts, designed for harsh environment applications. It features a self-aligning three-point bayonet coupling for quick and secure mating, with precise alignment through five keyways. The connector is environmentally sealed, capable of withstanding extreme shock, vibration, and exposure to salt spray, meeting 48-hour MIL-STD-1344 standards. Constructed from durable aluminum alloy with olive drab chromate over cadmium plating, it includes copper alloy solder pin contacts with gold plating. The connector operates across a temperature range of -55°C to +125°C, offers an insulation resistance of 5000 MΩ at 25°C, and supports up to 500 mating cycles at 1000VAC. It is compatible with MIL-C-26482 and VG95328 connectors, ensuring interchangeability and reliable performance in demanding conditions.
ITT CANNON MS3112E2041P MIL-DTL-26482 Receptacle Specifications:
- Connector Type: MIL-DTL-26482 Series I box mount receptacle
- Contacts: 41 copper alloy solder pin contacts with gold plating
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Coupling System: Self-aligning three-point bayonet with five keyways
- Environmental Resistance: Shock, vibration, salt spray resistant, meets MIL-STD-1344 48-hour standard
- Temperature Range: -55°C to +125°C
- Insulation Resistance: 5000 MΩ at 25°C
- Support: Up to 500 mating cycles
- Voltage: Supports 1000VAC
- Interchangeability: Compatible with MIL-C-26482 and VG95328 connectors
Buy the Amphenol MS3112E20-41P – Reliable MIL-DTL-26482 Series 1 for Industrial Applications
Order the Amphenol MS3112E20-41P MIL-DTL-26482 Series 1 box mount receptacle online today and ensure secure, reliable connections in harsh conditions. Built with durable aluminum alloy and gold-plated contacts, this connector is ideal for aerospace, military, and industrial uses. Its self-aligning bayonet coupling provides quick mating with precise alignment, while environmental sealing guarantees resistance to shock, vibration, and salt spray. Supporting up to 500 cycles at 1000VAC and operating from -55°C to +125°C, this high-quality connector guarantees long-lasting performance and dependable functionality in demanding applications.
Buy Amphenol MS3112E20-41P now and experience unmatched reliability and performance in demanding industrial and aerospace environments.
