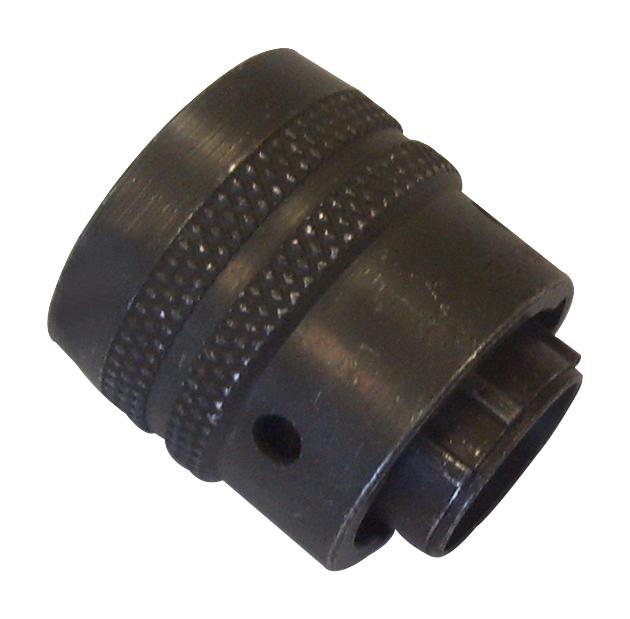

ITT CANNON MS3116F145P MIL-DTL-26482 Straight Plug
The MS3116F14-5P from ITT Cannon is a high-reliability MIL-DTL-26482 Series I straight plug connector with 5 contacts. It is designed for harsh environments, meeting strict standards for environmental resistance, including 48-hour salt spray and MIL-STD-1344 testing. This sealed connector withstands extreme shock, vibration, and temperature ranges from -55°C to +125°C, offers an insulation resistance of 5000 MΩ, and supports 500 mating cycles. Made of durable aluminum alloy with olive drab chromate cadmium plating, it uses copper alloy solder contacts with gold plating for secure electrical connections. Capable of operating at 1000 VAC, it ensures reliable performance in demanding applications.
ITT CANNON MS3116F145P MIL-DTL-26482 Straight Plug Specifications:
- Connector type: Straight plug, MIL-DTL-26482 Series 1
- Number of contacts: 5
- Contact material: Copper alloy with gold plating
- Body material: Aluminum alloy with olive drab chromate over cadmium plating
- Insulation resistance: 5000 MΩ at 25°C
- Operating voltage: 1000 VAC
- Temperature range: -55°C to +125°C
- Shock resistance: Meets MIL-STD-1344, 300g for 3 ms in 3 axes
- Vibration resistance: 16 hours of random vibration, 50–2000 Hz, 41.7 G peak
- Salt spray resistance: 48 hours
- Durability: 500 mating cycles
- Grommet: Resilient polychloroprene
Buy the Amphenol Series 2 MIL-DTL-26482 Straight Plug: MS3116F14-5P
Purchase your Amphenol Series 2 MIL-DTL-26482 straight plug MS3116F14-5P online today and benefit from a robust connector designed for harsh environments. With five high-quality copper alloy contacts gold plated for reliable electrical performance, an aluminum alloy body with protective olive drab chromate plating, and environmental sealing against moisture and contaminants, this connector offers excellent durability. It supports up to 1000 VAC, withstands extreme temperature ranges from -55°C to +125°C, and endures 500 mating cycles. Perfect for military, aerospace, and industrial applications requiring secure, long-lasting connections.
Order your Amphenol Series 2 MIL-DTL-26482 straight plug MS3116F14-5P today and ensure dependable connection performance in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3116F145P?
You can click on the BUY or RFQ button to purchase MS3116F145P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3116F145P?
You can download the MS3116F145P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3116F145P?
ITT CANNON
