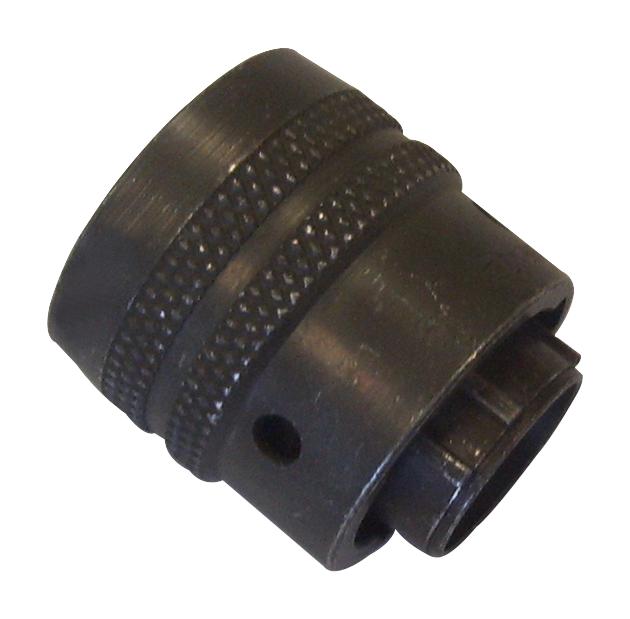

ITT CANNON MS3116F1626P Circular Connector
The product is a high-performance circular connector designed for military and industrial applications, featuring a durable aluminum shell with electroless nickel finish for corrosion resistance. It employs bayonet coupling for fast, secure connection, with optional alternate rotation positions to prevent cross-plugging. Suitable for operating voltages up to 1,000 VAC and capable of enduring over 500 mating cycles, it includes rear-release crimp contacts, environmental sealing, and multiple shell styles with various insert arrangements. Ideal for aerospace, military, and process control equipment requiring reliable, sealed electrical connections in harsh conditions.
ITT CANNON MS3116F1626P Circular Connector Specifications:
- Shell Styles: Wall mount with narrow or wide flange, cable connecting, jam nut, straight and RFI grounding plug
- Shell Sizes: 8 to 24
- Shell Material: Aluminum (Class L, A, W), stainless steel (Class G)
- Finish: Electroless nickel, anodized black, cadmium plated, or cobalt plated
- Operating Voltage: Up to 1,000 VAC (RMS)
- Durability: Minimum of 500 mating cycles
- Environmental Resistance: Fluid resistant, moisture proof, suitable for immersion tests
- Sealing: Elastomer grommet, lead-in chamfer, raised barriers for moisture seal
- Contacts: Rear-release crimp, qualified to SAE AS39029, all sizes 12-20 AWG
- Insertion/Removal Tools: Compatible crimp and insertion/removal tools for specified contact sizes
- Performance: Vibration and shock resistant per military standards, supported by MIL-DTL-26482 series 2 specifications
- Temperature Range: -65°C to 200°C
- Class Ratings: L (fluid resistant aluminum, electroless nickel), A (black anodized), W (cadmium olive drab), G (stainless steel passivated)
Buy the Amphenol MB10 – Reliable MIL-DTL-26482 Series 2 Connector for Industrial Applications
Purchase the Amphenol MB10 circular connector online today—engineered for durability and reliable electrical performance. Designed for harsh environments, it features a robust aluminum shell with optional alternate rotations to prevent mismating, rear-release crimp contacts, and high environmental resistance. Suitable for military, aerospace, and industrial applications, this connector ensures secure, moisture-proof connections with minimal maintenance. With versatile styles, multiple configurations and proven durability of over 500 mating cycles, buy now to ensure your equipment’s optimal performance and long-term reliability in demanding operational conditions.
Get Amphenol MB10 today—built for precision, environment resistance, and long-lasting durability in critical industrial and military environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3116F1626P?
You can click on the BUY or RFQ button to purchase MS3116F1626P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3116F1626P?
You can download the MS3116F1626P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3116F1626P?
ITT CANNON
