ITT CANNON MS3116F833S circular connector
The circular connector MS3116F8-33S features a straight shell style with a grommet seal and strain relief, designed for robust electrical connections. Made with aluminum alloy shell and copper alloy, gold-plated contacts, it offers water tightness to IP67 standards, withstands vibration and operational temperature variations, and supports up to 500 mating cycles. Ideal for industrial applications requiring reliable, corrosion-resistant connectors with solder cup contacts, rated for 7.5A at AWG20 wire. Suitable for use in demanding environments with high vibration and moisture conditions.
ITT CANNON MS3116F833S circular connector Specifications:
- Shell Style: Straight plug
- Endbell Style: Grommet seal with strain relief
- Shell Size: 8
- Contact Arrangement: 8-33
- Number of Contacts: 3, size 20
- Contact Type: Solder Cup
- Contact Material: Copper alloy, gold plated
- Shell Material: Aluminium alloy
- Shell Plating: Olive drab chromate over cadmium plating
- Insulator and Grommet Material: Polychloroprene
- Water Tightness: IP67 according to DIN 40 050
- Operating Temperature: -55°C to +125°C
- Mating Cycles: 500 min
- Vibration Resistance: 200 m/s² at 10 to 2000 Hz
- Contact Rating: 7.5A at AWG20
- Insulator Resistance: ≥5000 MOhm
- Test Voltage: 1500 V rms
- Operating Voltage: Max 50V, in accordance with DIN VDE 410 and IEC 60364-4-41

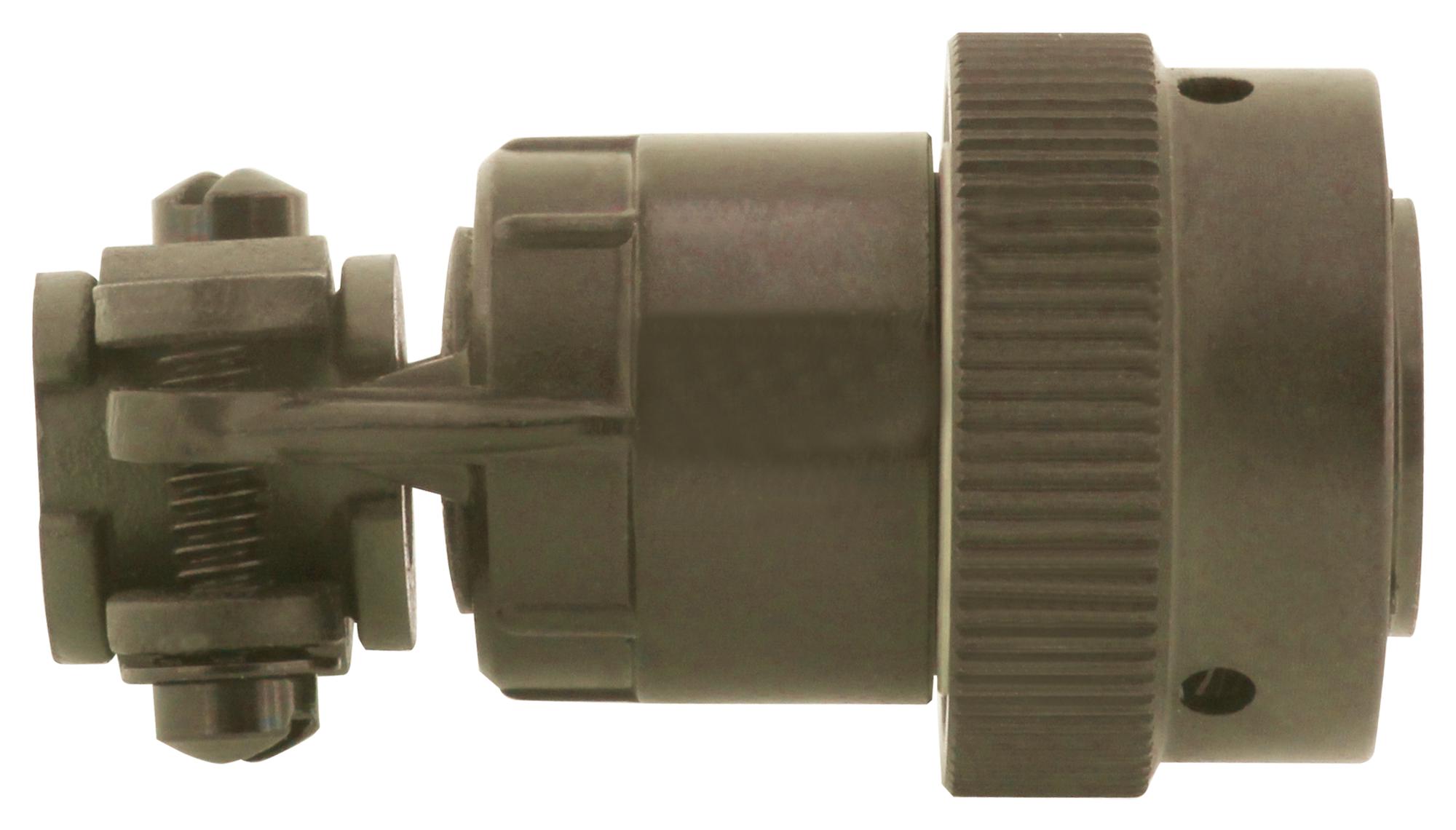

Buy the Cannon Series MIL-DTL 26482 Circular Connector: MS3116F8-33S
Purchase the Cannon circular connector MS3116F8-33S online today and ensure your industrial applications benefit from dependable, corrosion-resistant connections. Featuring an aluminum shell, gold-plated contacts, and IP67 water-tight sealing, this connector withstands harsh environments, vibration, and temperature extremes. With a robust design supporting 7.5A and 500 mating cycles, it is perfect for demanding industrial and military applications. Buy now and get quick delivery of a high-quality, durable connector that guarantees reliable performance in critical operations.
Buy Cannon MS3116F8-33S now and experience unmatched reliability and performance in demanding industrial environments.
