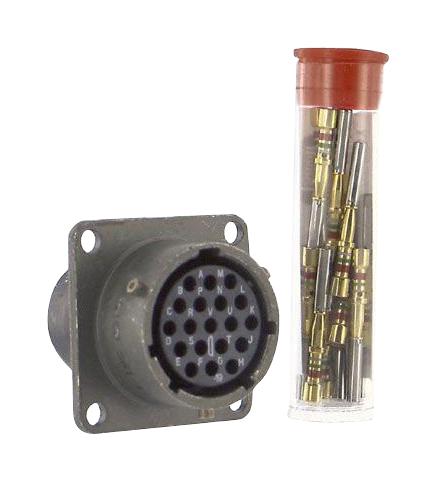

ITT CANNON MS3122E1419S MIL-DTL-26482 Receptacle
The MS3122E14-19S from ITT Cannon is a MIL-DTL-26482 Series I box mount receptacle featuring 19 contacts. It offers a robust build with an aluminum alloy body coated in olive drab chromate over cadmium plating. The connector utilizes high-performance copper alloy crimp socket contacts with gold plating, ensuring reliable electrical connections. Designed for harsh environments, it provides environmental sealing and can withstand extreme shock, vibration, and exposure. The connector is intermateable, intermountable, and interchangeable with MIL-C-26482 and VG95328 connectors. It features a self-levelling three-point bayonet coupling for quick, secure mating and precise alignment with five keyways. Its operating temperature ranges from -55°C to +125°C, with an insulation resistance of 5000 MΩ at 25°C. The contact system supports up to 500 mating cycles and operates at a voltage of 1000VAC. The resilient polychlorprene insulator and grommet enhance durability and environmental sealing.
ITT CANNON MS3122E1419S MIL-DTL-26482 Receptacle Specifications:
- Shell Material: Aluminum alloy, coated in olive drab chromate over cadmium plating
- Contacts: Copper alloy, gold plated, crimp socket type
- Number of Contacts: 19
- Operating Voltage: 1000 VAC
- Temperature Range: -55°C to +125°C
- Insulation Resistance: 5000 MΩ at 25°C
- Durability: Supports up to 500 mating cycles
- Environmental Resistance: Shock, vibration, exposure resistant
- Coupling System: Self-leveling three-point bayonet with five keyways
Buy the Amphenol Series MIL-DTL-26482: MS3122E14-19S
Order the Amphenol MIL-DTL-26482 Series I receptacle with 19 contacts online today. Featuring durable aluminum alloy construction, gold-plated crimp socket contacts, and excellent environmental sealing, this connector is ideal for harsh conditions. Its self-levelling three-point bayonet coupling ensures quick and secure mating, while the rugged design supports up to 500 mating cycles. Designed for high-voltage applications at 1000VAC, it withstands extreme temperatures from -55°C to +125°C, making it the perfect choice for aerospace, military, and industrial environments.
Buy Amphenol MS3122E14-19S now and experience unmatched reliability and high-performance sealing for demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3122E1419S?
You can click on the BUY or RFQ button to purchase MS3122E1419S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3122E1419S?
You can download the MS3122E1419S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3122E1419S?
ITT CANNON
