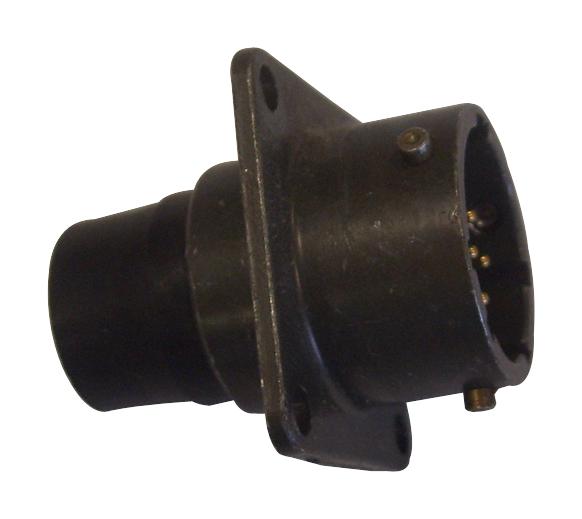

ITT CANNON MS3122E1626S Mil-Spec Circular Connector
The MS3122E16-26S from ITT Cannon is a rugged MIL-DTL-26482 Series I box mount receptacle with 26 contacts designed for demanding environments. It features a durable aluminum alloy shell with olive drab chromate over cadmium plating, and gold-plated copper alloy crimp contacts for reliable electrical performance. The connector is environmentally sealed to IP67, withstands extreme shock and vibration, and operates over a wide temperature range from -55°C to +125°C. It supports 500 mating cycles, has an insulation resistance of 5,000 MΩ at 25°C, and is compatible with MIL-C-26482 standards. Its self-leveling bayonet coupling ensures quick, secure, and precise mating suitable for harsh applications in aerospace, military, and industrial settings. Overall, this high-density connector combines durability, ease of use, and excellent environmental sealing for reliable performance in critical projects.
ITT CANNON MS3122E1626S Mil-Spec Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Arrangement: 16-26
- Number of Contacts: 26, Size 20
- Contact Type: Crimp, gold-plated copper alloy
- Water Tightness: IP67 according to DIN 40050, 0.2 bar pressure over 48 hours
- Operating Temperature: -55°C to +125°C
- Vibration Resistance: 200 m/s² at 10 to 2000 Hz
- Mating Cycles: Minimum 500
- Contact Rating: 7.5A at AWG20
- Insulation Resistance: ≥5000 MΩ at 25°C
- Test Voltage: 1500 V between conductors
- Operating Voltage: Up to 1000VAC in accordance with DIN VDE 410 and IEC 60364-4-41
- Sealing: IP67, tested per VG95319 Part 2, Test No. 5.9.2
- Coupling Mechanism: Self-leveling, three-point bayonet with five keyways
- Support: Intermateable, intermountable with MIL-C-26482 standards
Buy the ITT Series MIL-DTL 26482 Box Mount Receptacle: MS3122E16-26S
Buy the ITT Series MIL-DTL 26482 MS3122E16-26S online today and ensure your critical applications have a reliable, environmentally sealed connector. Featuring 26 high-quality crimp contacts, a durable aluminum shell with corrosion-resistant plating, and a secure bayonet coupling for fast mating, this connector excels in demanding environments such as aerospace, military, and industrial settings. Withstanding shock, vibration, and extreme temperature fluctuations, it supports up to 500 mating cycles and provides excellent electrical insulation and sealing. Invest in this high-performance connector now for peace of mind and dependable performance in your essential projects.
Order your ITT Series MIL-DTL 26482 MS3122E16-26S today and equip your projects with a durable, sealed connector designed for harsh environments and quick assembly.
Frequently Asked Questions
Where can I buy ITT CANNON MS3122E1626S?
You can click on the BUY or RFQ button to purchase MS3122E1626S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3122E1626S?
You can download the MS3122E1626S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3122E1626S?
ITT CANNON
