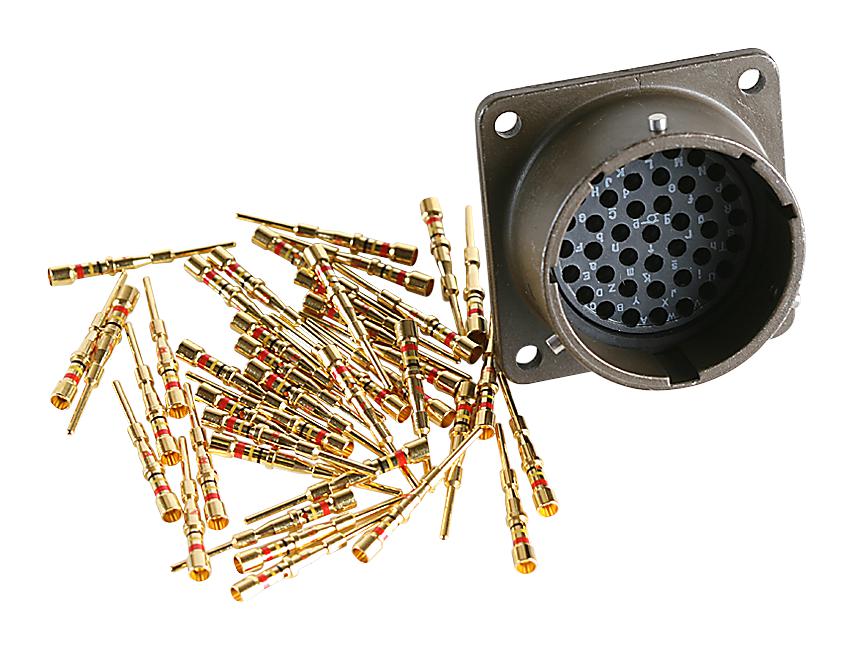

ITT CANNON MS3122E2041P High-Density Electrical Receptacle
The MS3122E20-41P from ITT Cannon is a MIL-DTL-26482 Series I box mount receptacle featuring 41 contacts. This connector is designed to provide reliable electrical performance with a high contact density, making it suitable for harsh environments. It offers intermateability, interchangeability, and compliance with MIL-C-26482 and VG95328 standards. The connector features a self-locking three-point bayonet coupling for quick and secure mating, precise alignment with five keyways, and is environmentally sealed to withstand extensive exposure to extreme conditions such as shock, vibration, and corrosion. Its operating temperature ranges from -55°C to +125°C, with an insulation resistance of 5000 MΩ at 25°C. The connector supports up to 500 mating cycles and operates at a voltage of 1000VAC. Constructed from lightweight aluminum alloy with olive drab chromate over cadmium plating, it incorporates copper alloy crimp pin contacts with gold plating for enhanced conductivity. The design also includes a resilient polychloroprene insulator and grommet for added durability.
ITT CANNON MS3122E2041P High-Density Electrical Receptacle Specifications:
- Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contacts: Copper alloy with gold plating
- Contacts Quantity: 41 contacts
- Operating Temperature Range: -55°C to +125°C
- Insulation Resistance: 5000 MΩ at 25°C
- Voltage Rating: 1000VAC
- Coupling Mechanism: Self-locking three-point bayonet
- Environmental Sealing: Fully sealed against shock, vibration, corrosion
- Support for: Up to 500 mating cycles
- Key Features: High contact density, intermateability, compliance with MIL-C-26482 and VG95328
Buy the ITT Industries Series MIL-DTL-26482 Box Mount Receptacle: MS3122E20-41P
Purchase the ITT Industries Series MIL-DTL-26482 box mount receptacle MS3122E20-41P online today. Designed for demanding environments, it features 41 gold-plated copper contacts for superior conductivity, an environmentally sealed construction for durability, and a lightweight aluminum alloy shell with corrosion-resistant coating. This connector supports up to 500 mating cycles, operates over a temperature range of -55°C to +125°C, and complies with MIL-C-26482 standards. Compatible with various cable types, it provides quick bayonet coupling, reliable locking, and high contact density—ideal for military, industrial, and harsh environment applications.
Order your ITT Industries Series MIL-DTL-26482 box mount receptacle MS3122E20-41P today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy ITT CANNON MS3122E2041P?
You can click on the BUY or RFQ button to purchase MS3122E2041P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3122E2041P?
You can download the MS3122E2041P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3122E2041P?
ITT CANNON
