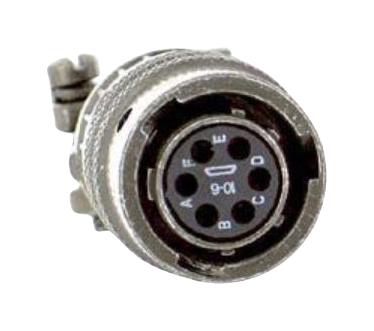

ITT CANNON MS3126F106S MIL-DTL-26482 Connector
The MS3126F10-6S is a MIL-DTL-26482 Series I straight plug connector with six contacts, engineered for high durability in harsh environments. It features a self-leveling bayonet coupling with five keyways for secure mating and quick engagement. Constructed from aluminum alloy with olive drab chromate over cadmium plating, it provides environmental sealing, salt spray resistance, and temperature operation from -55°C to +125°C. Equipped with copper alloy crimp socket contacts with gold plating, it ensures reliable electrical performance with 5000 MΩ insulation resistance at 25°C, supporting up to 1000 VAC voltage and 500 mating cycles.
ITT CANNON MS3126F106S MIL-DTL-26482 Connector Specifications:
- Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contacts: Copper alloy crimp socket contacts with gold plating
- Contacts Quantity: 6
- Temperature Range: -55°C to +125°C
- Insulation Resistance: 5000 MΩ at 25°C
- Operating Voltage: Up to 1000 VAC
- Mating Cycles: Up to 500
- Environmental Resistance: Salt spray resistance for 48 hours
- Coupling System: Self-leveling three-point bayonet with five keyways
- Dimensions: As per MIL-DTL-26482 Series 1 specifications
- Sealing: Environmentally sealed for reliable performance in harsh conditions
Buy the Amphenol MS3126F10-6S U+2013 Reliable MIL Connector for Industrial Applications
Purchase the Amphenol MS3126F10-6S MIL-DTL-26482 Series I straight plug connector online today for high durability and environmentally sealed performance. Designed for extreme conditions, it features a quick bayonet coupling with five keyways for secure, rapid mating and reliable electrical connection. Made from corrosion-resistant aluminum alloy with gold-plated copper contacts, the connector withstands temperatures from -55°C to +125°C and up to 500 mating cycles. Ideal for military, aerospace, and industrial applications requiring high voltage capacity and environmental sealing.
Order your Amphenol Series MS3126F10-6S high-reliability connector today and ensure robust, sealed connections for your most demanding projects.
Frequently Asked Questions
Where can I buy ITT CANNON MS3126F106S?
You can click on the BUY or RFQ button to purchase MS3126F106S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3126F106S?
You can download the MS3126F106S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3126F106S?
ITT CANNON
