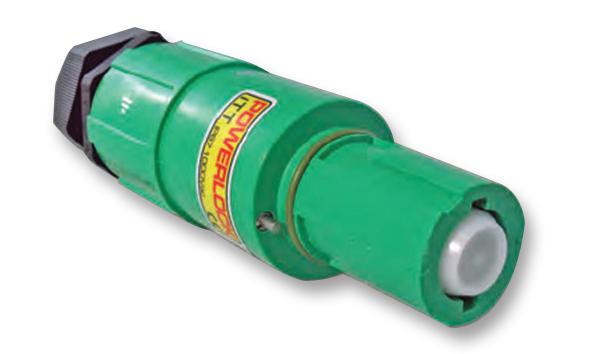

ITT CANNON NLDFTEGNLS120M40A PowerLock Connector
PowerLock high current electrical connector designed for reliable and secure power distribution in industrial, construction, and energy applications. Features include high current ratings of up to 660A, IP67 environmental sealing for protection against dust and water, and a robust bayonet locking mechanism with secondary lock for added security. Compatible with copper and aluminum cables, it offers easy termination via crimp or set-screw, with color-coded and keyed connectors to ensure correct mating. Suitable for use in generators, load banks, and heavy-duty power distribution systems, it ensures safety, durability, and efficient power transfer in demanding environments.
ITT CANNON NLDFTEGNLS120M40A PowerLock Connector Specifications:
- Current Rating: Up to 660A continuous
- Voltage Rating: 1000V AC / 1500V DC
- Environmental Protection: IP67 when mated
- Contact Material: Brass or Copper, Silver Plated
- Housing Material: High Temperature Thermoplastic
- Locking Mechanism: Bayonet with secondary locking pin
- Mating Cycles: 500
- Contact Resistance: <0.1 mOhm
- Operating Temperature: -30°C to +125°C
- Vibration Resistance: 10-2000Hz/15g
- Certifications: UL94-VO, RoHS compliant
Buy the ITT Series PowerLock High Current Connector: NLDFTEGNLS120M40A
Get your ITT PowerLock high current connector online today for safe, durable, and efficient power distribution in industrial applications. Designed to handle up to 660A, IP67 sealing ensures protection against dust and water, making it perfect for generators, load banks, and heavy-duty power systems. Easy to terminate via crimp or set-screw, with secure bayonet locking and secondary lock for added safety. Reliable, rugged, and manufacturer-approved, order now to ensure your power distribution needs are met with top quality and secure connections.
Order your ITT Series PowerLock high current connector today and experience secure, reliable power transfer for demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON NLDFTEGNLS120M40A?
You can click on the BUY or RFQ button to purchase NLDFTEGNLS120M40A from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part NLDFTEGNLS120M40A?
You can download the NLDFTEGNLS120M40A datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of NLDFTEGNLS120M40A?
ITT CANNON
