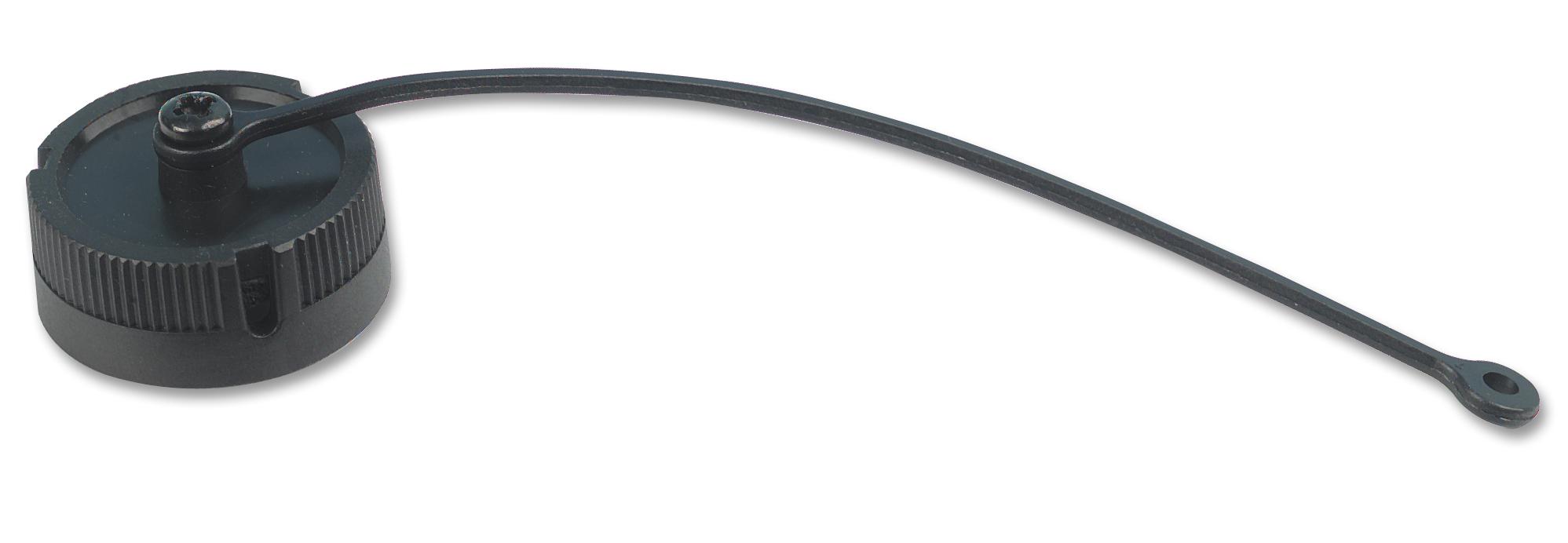

ITT CANNON TNA16DCR001B Ringlock Circular Connector
The Ringlock Circular Connectors system features a robust metal bayonet coupling for quick, reliable connections in industrial environments. Made with thermoplastic bodies, these connectors are available in various sizes from 4 to 48 circuits, supporting signals up to 13 A or coaxial signals. They can be water-sealed to meet IP65 with an added cable clamp. Suitable for industrial electronics, robotic systems, manufacturing, and printing equipment, these connectors are rated for 250 Vac rms, operate from -55°C to 105°C, and include both sealed and unsealed versions with UL and CSA recognition.
ITT CANNON TNA16DCR001B Ringlock Circular Connector Specifications:
- Operating Voltage: 250 Vac rms
- Contact Current Rating: Up to 13 A
- Temperature Range: -55°C to 105°C
- Insulation Resistance: 5000 MQ at 500 V de
- Materials: Black Nylon insulator, High Strength Copper Alloy coupling ring and support band, Stainless Steel bayonet pins
- Finish: Nickel-plated coupling ring and support band
- Shell Size Range: From 10 to 24
- Number of Circuits: 4 to 48
- Water Sealing: IP65 with cable clamp
- Positive bayonet locking mechanism
- UL and CSA recognized
- Mating Face Views: Various arrangements from 4 to 48 ways
- Dimensions: Sizes vary, interface diameter from 1.00 inch (Shell Size 16)
Buy the ITT Series Trident Ringlock Circular Connectors: TNA16DCR001B
Enhance your industrial connections with the robust Ringlock Circular Connector featuring a bayonet coupling for secure, quick assembly. Made with durable thermoplastic bodies and high-quality materials, these connectors support signals up to 13 A and can be water-sealed to meet IP65 standards, offering excellent protection in demanding environments. Suitable for industrial electronics, robotic systems, and manufacturing equipment, they are UL and CSA recognized, with various sizes for flexible installation and reliable service under extreme temperatures.
Buy ITT Series Trident Ringlock Circular Connectors now and experience unmatched reliability and performance in industrial electronics and robotics applications.
Frequently Asked Questions
Where can I buy ITT CANNON TNA16DCR001B?
You can click on the BUY or RFQ button to purchase TNA16DCR001B from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part TNA16DCR001B?
You can download the TNA16DCR001B datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of TNA16DCR001B?
ITT CANNON
