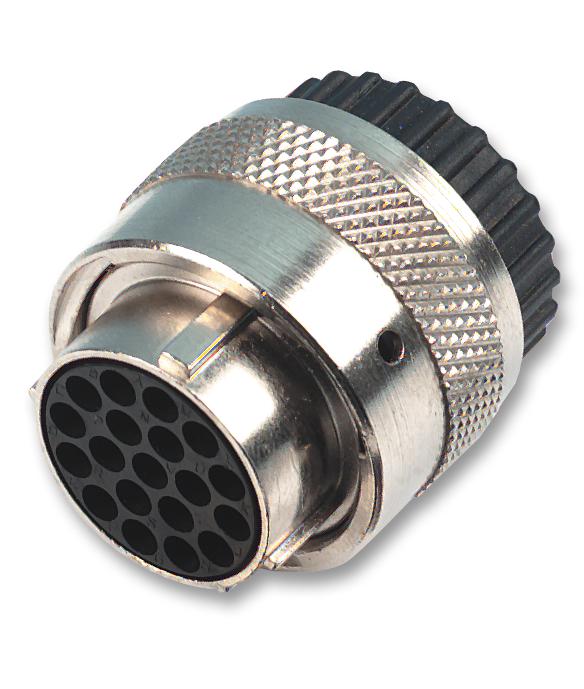

ITT CANNON TNM6S160019S1L Circular Connector
ITT CANNON's TNM series connectors provide a reliable and cost-effective alternative to MIL-DTL-26482 circular connectors. Designed for industrial and vehicular applications, these connectors are fully sealed for moisture protection and offer a robust construction. While not intermateable, the TNM series delivers a balance of performance and affordability, making them suitable for a wide range of applications including trucks, buses, industrial machinery, and remote sensors.
ITT CANNON TNM6S160019S1L Circular Connector Specifications:
- Heat: Damp Heat to BS 2011 Pt2 Ca, 21 days exposure +105°C to -50°C (5 cycles) remainswithinspecifcations
- Color: Silver (TNM) or Black with silver coupling nut and ring
- Seals: Rubber, silicone
- Shell: UL94V0 thermoplastic with nickel-plated copper alloy coupling nut and bayonetlock ring
- Shock: 50g 11ms MIL-STD-202 Method 213 condition A
- Plating: Tin, gold fash, gold (1 micron), heavy gold (4 microns)
- Sealing: Upto IP67
- Contacts: High-reliability copper alloy available in two versions: stamped and formed or machined
- Vibration: 5 to 55 Hz (1 minute) No discontinuities longer than 1-microsecond
- Wire Size: 20 - 16 AWG
- Salt Spray: To MIL-STD-1344 Method 1001 (48 hrs. no corrosion)
- Mating Life: 500 cycles (machined contacts); 200 cycles (stamped)
- Contact Type: Crimp, PC, first mate/last break, co-ax, wire wrap
- Polarization: Standard or reversed
- Test Voltage: 2000 Vac rms test potential
- Agency Listing: UL (E102053), CSA (LR68300), TNM: UL, C-UL, E151413
- Crimp Contacts: Semi-automatic, hand-crimpable or fully-automatic
- Current Rating: 30 Amps (Neptune Power contacts), 13 Amps (Signal contacts). 16 Amp contacts available. TNM 40 amp power.
- Wire Range Sizes: 28 - 14 AWG (stamped contacts), 28 - 16 AWG (machined), 18- 12 AWG (Power Neptune) 16-8AWG (Power TNM)
- Contact Insertion: No tool required. Suitable for automation.
- Contact Retention: 20 lbs. minimum per contact
- Operating Voltage: Up to 250 Vac rms degree of pollution permitting per IEC664 (TNM 700-volt power version)
- Wire Strip Length: 5.59 mm (.220 in) to 5.33 mm (.210 in)
- Contact Extraction: Rear removable
- Contact Resistance: 5 Milliohms Initial
- Number of Circuits: 4 to 48
- Chemical Resistance: Connectors show no damage when exposed to fluids used in industrial/vehicle applications.
- Insulation Resistance: 5000 Megaohms at 500Vdc
- Wire Insulation Sealing Range: 1.98 mm (.078 in) to 3.30 mm (.130 in) diameter
