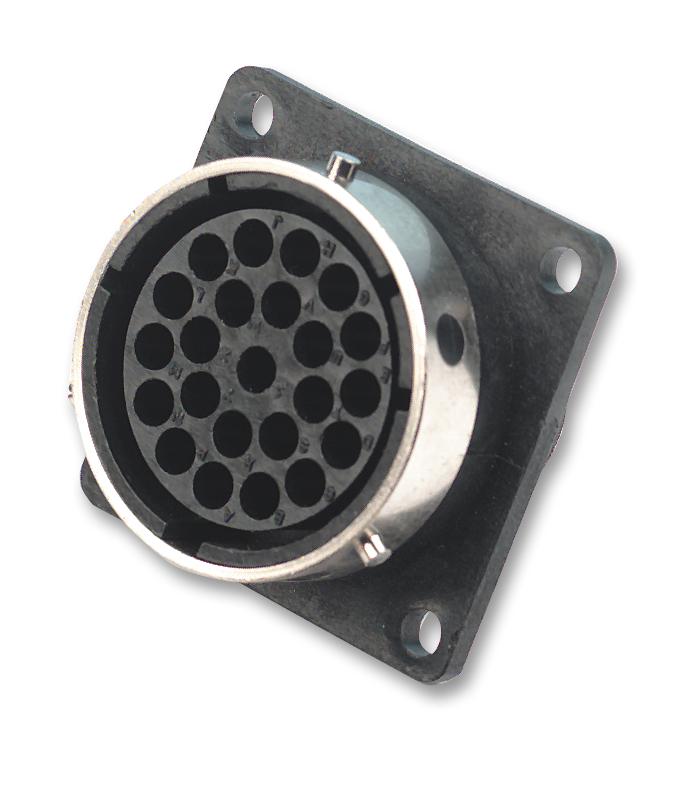

ITT CANNON TR2448RFS1NB Industrial Sealed Receptacle Connector
The Cannon Trident Series TR2448RFS1NB is a high-quality, sealed receptacle connector designed for industrial applications. Made with a durable black nylon body, it features 48 contacts and a nickel-plated copper alloy coupling ring for enhanced corrosion resistance. Supporting up to 250 V ac rms or 380 V ac rms (Size 1807), it delivers reliable performance with a contact current rating of 13A. With an operating temperature range from -55°C to +105°C and up to 500 mating cycles, this connector ensures long-lasting durability in harsh environments. Its IP65 sealing rating makes it suitable for outdoor or demanding industrial use.
ITT CANNON TR2448RFS1NB Industrial Sealed Receptacle Connector Specifications:
- Shell Size: 24
- Number of Contacts: 48
- Contact Type: Accepts Female Contacts
- Material: Nylon
- Connector Body: Black Nylon
- Coupling Ring: Nickel Plated Copper Alloy
- Bayonet Pins: Stainless Steel
- Mounting Style: Standard
- Operating Voltage: Up to 250 V ac rms, 380 V ac rms (Size 1807 only)
- Contact Current Rating: Up to 13A
- Operating Temperature: -55°C to +105°C
- Insulation Resistance: 5000 Megaohms at 500 V de
- Durability: Up to 500 Mating Cycles
- Sealing: Up to IP65
- Flammability Rating: UL94-VO
- Materials and Finishes: Connector Body Black Nylon, Nickel Plated Copper Alloy, Stainless Steel Pins
- Dimensions and features subject to change
Buy the Buy Cannon TR2448RFS1NB Part Number TR2448RFS1NB Online
Order the Cannon TR2448RFS1NB industrial sealed receptacle online today for reliable connection in harsh environments. Designed with a durable nylon body and high-quality nickel-plated components, it provides excellent corrosion resistance and long-lasting durability. Supporting up to 250 V AC and 13A, this connector is ideal for industrial, outdoor, or demanding applications. Its IP65 sealing ensures protection against dust and water ingress, making it suitable for challenging conditions. Purchase online now for fast delivery and secure connection solutions.
Get Cannon TR2448RFS1NB today—built for industrial strength, corrosion resistance, and long-lasting performance.
Frequently Asked Questions
Where can I buy ITT CANNON TR2448RFS1NB?
You can click on the BUY or RFQ button to purchase TR2448RFS1NB from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part TR2448RFS1NB?
You can download the TR2448RFS1NB datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of TR2448RFS1NB?
ITT CANNON
