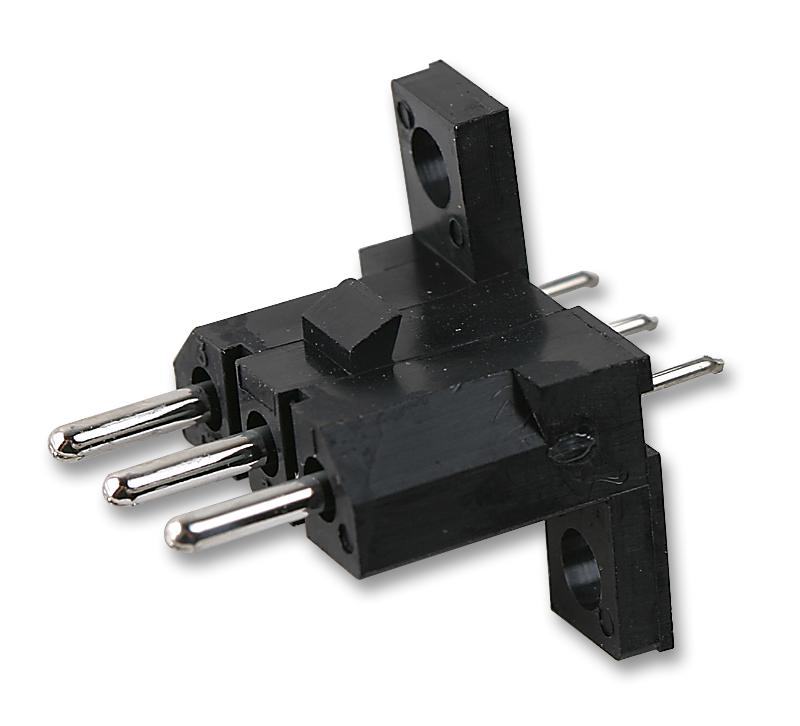

ITT CANNON TST12RB05T Rectangular Connector
The TST12RB05T is a high-quality rectangular snap-together connector system designed for easy assembly and reliable internal wiring and circuit board connections. Suitable for applications involving motors, fans, and transformers, this connector offers UL and CSA recognition, accepting formed or machined contacts. It features molded latches and polarization, rated for up to 13 A and 250 V AC, with an operating temperature range from -55°C to 105°C. Constructed from UL 94V-0 black nylon, it ensures durability and safety in electrical installations.
ITT CANNON TST12RB05T Rectangular Connector Specifications:
- Operating Voltage: 250 Vac rms
- Contact Current Rating: Up to 13 A
- Temperature Range: -55°C to 105°C for free plug and panel receptacles, -40°C to 105°C for PCB mounted receptacles
- Insulation Resistance: 5000 MQ at 500 V de
- Connector Latching Force: 150 N min. with latches engaged
- Test Voltage: 2000 V ac for 60 secs
- Panel Retention Force: 500 N min.
- Material: Black Nylon, UL 94V-0
- Dimensions: Refer to detailed dimension drawings in mm, subject to change depending on model
- Compatibilities: Accepts pin or socket contacts, contacts ordered separately, suitable for use with various circuit components
Buy the Buy ITT Industries Connector Part Number TST12RB05T Online
Purchase the Rectangular Connector TST12RB05T online today to enjoy a cost-effective, easy-to-install solution for circuit board and internal wiring connections. Designed for durability, it features molded latches, polarization, UL recognition, and a broad temperature range from -55°C to 105°C. Rated for up to 13 A and 250 V AC, this connector ensures secure and reliable connections in demanding electrical environments. Order now for fast delivery and seamless integration into your electrical systems.
Buy ITT Industries TST12RB05T now and experience unmatched reliability and performance in electrical connector assembly and internal wiring applications.
Frequently Asked Questions
Where can I buy ITT CANNON TST12RB05T?
You can click on the BUY or RFQ button to purchase TST12RB05T from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part TST12RB05T?
You can download the TST12RB05T datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of TST12RB05T?
ITT CANNON
