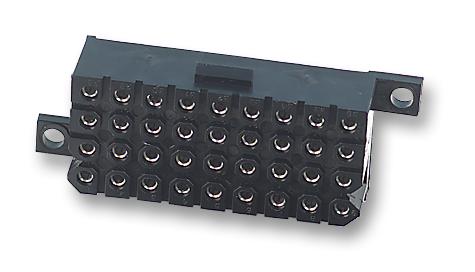

ITT CANNON TST24RB06T Rectangular Connector System
The TST24RB06T is a high-quality rectangular snap-together connector system suitable for circuit board and internal wiring applications. Recognized under UL and CSA, it offers easy, cost-effective installation with integrally molded latches and polarization features. It supports up to 13 A and 250 VAC, with robust insulator materials like UL 94V-0 black nylon. Designed for durability, it includes various pin and socket contact options, making it ideal for reliable electronics and manufacturing assembly tasks. Its versatile design simplifies complex wiring connections efficiently and securely.
ITT CANNON TST24RB06T Rectangular Connector System Specifications:
- Rated Voltage: 250 VAC rms
- Contact Current Rating: Up to 13 A (derating curve applicable)
- Temperature Range: -55°C to 105°C for Receptacles, -40°C to 105°C for PCB Mounted Receptacles
- Insulation Resistance: 5000 MΩ at 500 V DC
- Connector Latching Force: 150 N minimum with latches engaged
- Test Voltage: 2000 V AC for 60 seconds
- Panel Retention Force: 500 N minimum
- Materials: Black UL 94V-0 Nylon insulator, silver or gold plated contacts
- Mechanical Features: Integrally molded latches, polarization for inter-connector discrimination
- Contact Positions: Variants including 2, 3, 4, 6, 12, 24, 36 ways with compatible pins and sockets
Buy the Buy ITT Industries Trident Connector System Part Number TST24RB06T Online
Enhance your electronic projects with the durable and reliable Rectangular Connector System. Designed for easy snap-together assembly, it supports high current and voltage applications, featuring molded latches and polarization for secure connections. Compatible with a variety of contact types, this connector ensures dependable internal wiring for circuit boards and equipment. Perfect for manufacturing and repair tasks, order online today to benefit from fast delivery, competitive pricing, and trusted quality for your electronics assembly needs.
Order your ITT Industries Trident Connector System TST24RB06T today and enjoy reliable, easy-to-assemble circuit connections with proven durability.
Frequently Asked Questions
Where can I buy ITT CANNON TST24RB06T?
You can click on the BUY or RFQ button to purchase TST24RB06T from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part TST24RB06T?
You can download the TST24RB06T datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of TST24RB06T?
ITT CANNON
