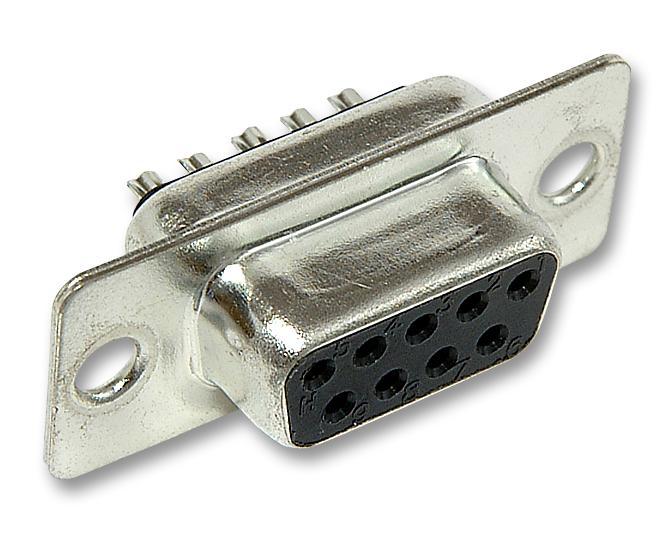

ITT CANNON ZDE9S0L2 D Sub Connector
The ZDE9SOL2 is a low-cost, high-reliability D Sub connector designed for industrial and electronic applications. It features a 9-contact socket arrangement with gold flash plating for enhanced performance. Made from durable steel with tin finish, its glass-filled thermoplastic insulator ensures safety up to 105°C. Capable of withstanding 1000 VAC dielectric voltage and rated for 5 A, this connector offers straight solder termination, 50 mating cycles, and a through-hole mounting method. Suitable for demanding environments requiring robust, cost-effective interconnections.
ITT CANNON ZDE9S0L2 D Sub Connector Specifications:
- Wire Gauge Range AWG 20-28
- Mating Cycles: 50
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Current Rating: 5 Amax
- Contact Resistance: 20 milli Ohm max
- Operating Temperature: -55°C to +105°C
- Shell Material: Steel with tin finish
- Insulator Material: Glass filled thermoplastic, UL 94V-0
- Insulator Color: Black
- Contact Arrangement: 9 contacts, size 20
- Gender: Socket
- Contact Type: Stamped
- Contact Material: Copper alloy
- Contact Finish: Gold flash (Performance Class 3)
- Contact Termination: Straight solder
- Mounting Method: Through hole (.120" or 3.05 mm)
Buy the Cannon ZDE9SOL2 – Reliable D Sub Connector for Industrial Applications
Enhance your electronic and industrial projects with the ZDE9SOL2 D Sub connector by Cannon. Designed to deliver reliable, durable connections, it features 9 gold-flash contacts rated for 5A and 1000VAC. Its robust steel shell with a tin finish and thermoplastic insulator ensures high performance in challenging environments. Suitable for through-hole mounting with straight solder termination, this connector supports 50 mating cycles and withstands temperatures from -55°C to +105°C, making it an excellent choice for control systems and electronic devices.
Buy Cannon ZDE9SOL2 now and experience unmatched reliability and performance in demanding industrial and electronic systems.
Frequently Asked Questions
Where can I buy ITT CANNON ZDE9S0L2?
You can click on the BUY or RFQ button to purchase ZDE9S0L2 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part ZDE9S0L2?
You can download the ZDE9S0L2 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of ZDE9S0L2?
ITT CANNON
