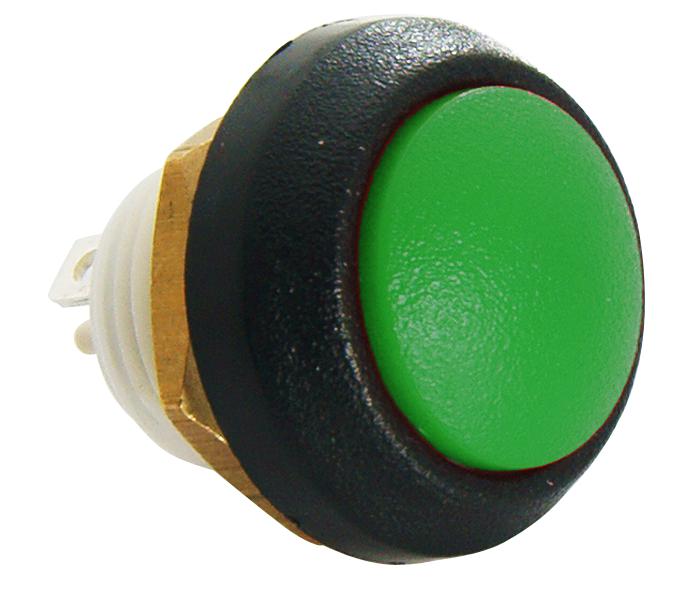

ITW Switches 482RBNGRB sealed pushbutton switch
This sealed 12mm miniature pushbutton switch series offers durable electrical and mechanical performance with IP67 ingress protection, suitable for industrial, medical, outdoor, and transportation applications. It features momentary or maintained contact action, gold or silver contacts, multiple mounting options including bushing and snap-fit, and LED illumination with various color choices. Operating within -40°C to +85°C, these switches support high cycle reliability and safe dielectric strength, making them ideal for harsh environments requiring precise control and long-lasting durability.
ITW Switches 482RBNGRB sealed pushbutton switch Specifications:
- Ingress Protection: IP67
- Operating Temperature: -40°C to +85°C
- Electrical Ratings: 10mA @ 12VDC, 20K cycles (Momentary), 20K cycles (Maintained)
- Dielectric Strength: 1,000 VAC
- Insulation Resistance: 1 GΩ
- Contact Resistance: 50 mΩ
- Wire Leads: UL Style 1007, 26 AWG, Stranded
- Button Travel: 2.3 mm
- Operating Force: 3 N (306 g)
- Panel Thickness: Bushing: 0.5-3.0 mm, Snap-fit: 1.3-3.0 mm
- Nut Torque Max: 6 kgf·cm
- Environmental: Sealed to IP67, suitable for outdoors and harsh environments
Buy the ITW Switches 482RBNGRB – Reliable Sealed Pushbutton for Industrial Applications
Order the ITW Switches 482RBNGRB sealed pushbutton switch online today and experience exceptional durability, IP67 ingress protection, and versatile mounting options. Designed for demanding industrial, outdoor, and transportation applications, this switch offers reliable momentary or maintained contact action with LED illumination in various colors. Its robust construction supports high cycle reliability with operating temperatures from -40°C to +85°C, dielectric strength of 1,000 VAC, and resistance to environmental elements. Perfect for engineering, automation, and control systems requiring precision, longevity, and safety.
Get ITW Switches 482RBNGRB today—built for precision and long-lasting durability in harsh environments and industrial control systems.
Frequently Asked Questions
Where can I buy ITW Switches 482RBNGRB?
You can click on the BUY or RFQ button to purchase 482RBNGRB from an authorized ITW Switches distributor.
How do I troubleshoot issues or seek technical support for part 482RBNGRB?
You can download the 482RBNGRB datasheet or visit the ITW Switches website for support.
Who is the manufacturer of 482RBNGRB?
ITW Switches
