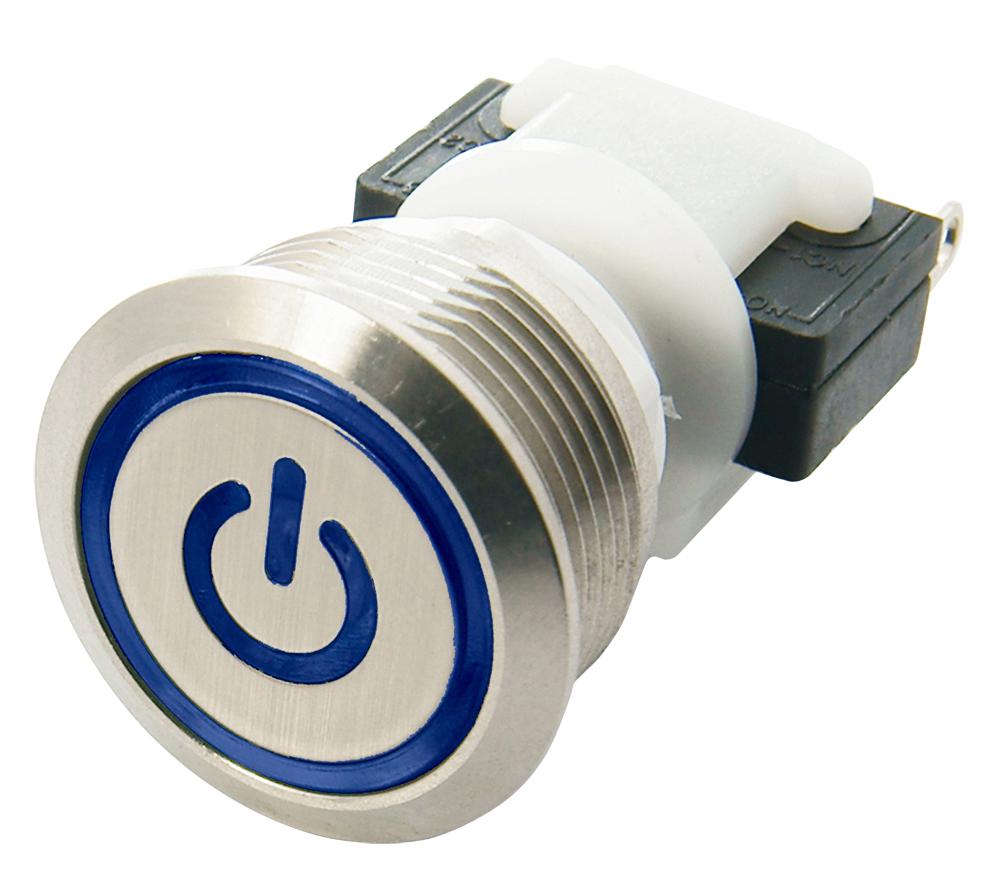

ITW-Switches H48M113B4044 Pushbutton Switch
The 19mm panel-sealed pushbutton switch series H48M offers rugged electromechanical operation with stainless steel or zinc alloy housings, featuring momentary or maintained actions. Capable of withstanding outdoor environments with IP67 sealing, these switches include optional center spot or ring illumination in multiple LED colors. Designed for applications across transportation, security, medical, food processing, and industrial machinery, they support various electrical ratings and are UL and CSA certified. Easy to install with a panel thickness range of 0.020–0.177 inches, they ensure reliable operation up to 500,000 cycles for momentary use.
ITW-Switches H48M113B4044 Pushbutton Switch Specifications:
- Panel Mounting Diameter: 19mm
- Panel Thickness: 0.020–0.177 inches
- Sealing: IP67
- Housing Material: Stainless Steel or Zinc Alloy
- Electrical Ratings: 10A @ 125/250 VAC, 10A @ 28 VDC
- Button Travel: 0.09 inches (2.3 mm)
- Operating Force: 5.2N (520 grams)
- Contact Resistance: 50 mΩ max
- Dielectric Strength: 1,000 VAC
- Insulation Resistance: 100 MΩ min
- Temperature Range: -40°C to +85°C (momentary), -40°C to +65°C (maintained)
- LED Forward Voltage: Red, Amber, Yellow 2 V; Green, Blue, White 3.4 V
- Switch Life: 500,000 cycles (momentary), 50,000 cycles (maintained)
- Certifications: UL, CSA
- Mounting: Via lock nut, sealed with O-ring
- Switch Type: SPDT Form Z
- Illumination Options: Center Spot or Ring, LED color varies
- Cable Terminals: 0.110 inch, bottom screw terminals
- Operating Temperature: -13°F to +185°F (-25°C to +85°C)
Buy the Industrial Series H48M Pushbutton Switch: H48M113B4044
Order the Industrial Series H48M113B4044 pushbutton switch online today and enjoy a reliable, IP67-sealed switch perfect for outdoor, medical, security, and industrial control applications. Featuring robust stainless steel housing and optional LED illumination, the switch offers 10A rated power with easy installation. Its rugged design ensures durability up to 500,000 cycles, meeting UL and CSA standards. Whether for automation or control panels, this switch provides superior performance, quick setup, and consistent operation, making it an essential component for demanding environments.
Get Industrial Series H48M113B4044 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy ITW-Switches H48M113B4044?
You can click on the BUY or RFQ button to purchase H48M113B4044 from an authorized ITW-Switches distributor.
How do I troubleshoot issues or seek technical support for part H48M113B4044?
You can download the H48M113B4044 datasheet or visit the ITW-Switches website for support.
Who is the manufacturer of H48M113B4044?
ITW-Switches
