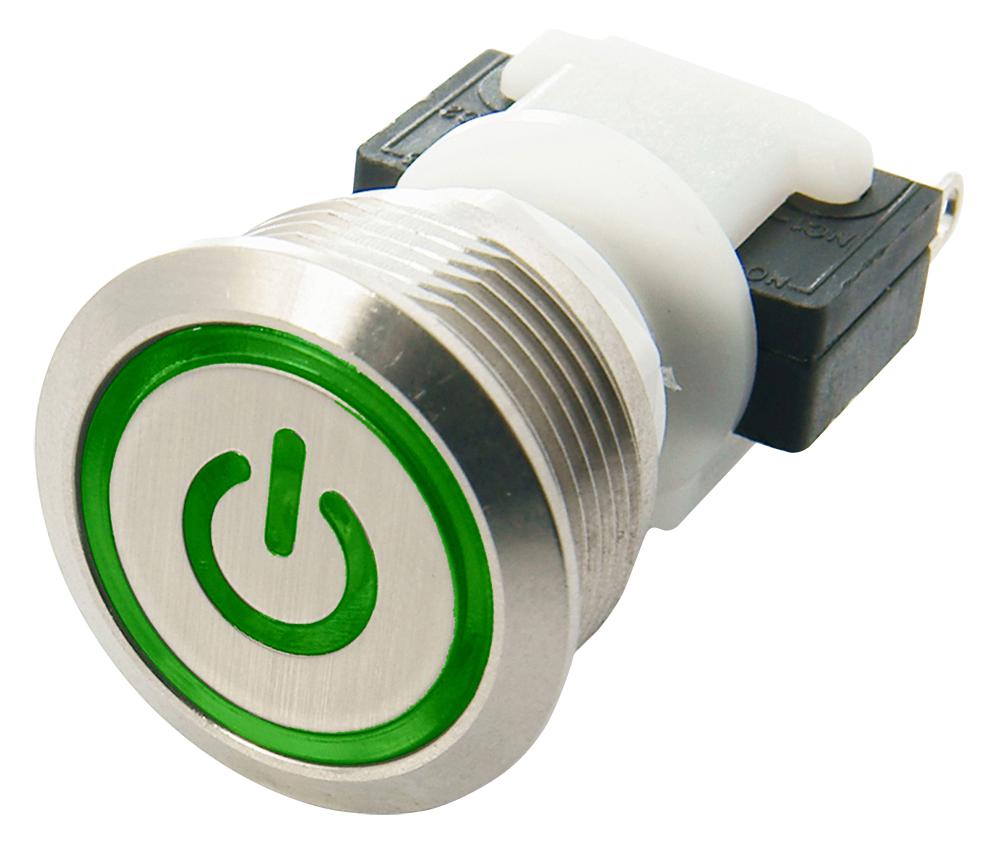

ITW-Switches H48M213G4044 Pushbutton Switch
The 19mm panel-sealed pushbutton switch series H48M is a rugged electromechanical device designed for industrial, transportation, security, and medical applications. It features stainless steel or zinc alloy housings, with options for momentary or maintained action and center spot or ring illumination in various LED colors. With an IP67 rating, high durability, and long cycle life, these switches are suitable for outdoor controls, security systems, and machinery controls, offering reliable operation in harsh environments and easy panel mounting.
ITW-Switches H48M213G4044 Pushbutton Switch Specifications:
- Housing Material: Stainless Steel or Zinc Alloy
- Size: 19mm diameter
- Sealing: IP67 rated for outdoor and harsh environments
- Action Types: Momentary or Maintained
- LED Colors: Red, Yellow, Green, Blue, White with ring or center spot illumination
- Contact Rating: 10A at 125/250 VAC, 10A at 28 VDC
- Switching: SPDT, Form Z with silver contacts
- Actuator Travel: 0.09 inches (2.3 mm)
- Operating Force: 5.2N (520 grams)
- Panel Thickness: 0.020 to 0.177 inches (0.5 to 4.5 mm)
- Temperature Range: -40°C to +85°C for momentary, -40°C to +65°C for maintained
- Electrical Life: 500,000 cycles (momentary), 50,000 cycles (maintained)
- Ingress Protection: IP67 with sealing gasket and gasketed panel mounting
- Terminals: Bottom screw terminals, 0.110 inch spacing
- Operating Voltage: 12V, 24V, or as specified, with optional resistor for LED
Buy the Fujitsu H48M213G4044 – Reliable Heavy-Duty Pushbutton Switch for Industrial Applications
Order the Fujitsu H48M213G4044 pushbutton switch today for robust, panel-sealed operation suitable for outdoor and industrial environments. Featuring IP67 ingress protection, high current capacity, and multiple LED illumination options, this switch ensures reliable performance in security, transportation, food processing, and medical equipment. Its durable stainless steel or zinc alloy housing withstands harsh conditions, providing a long service life with up to 500,000 cycles. Easy to install with bottom screw terminals and optional ring or center spot LED illumination—perfect for demanding control applications. Buy now to ensure dependable operation in your equipment.
Get Fujitsu H48M213G4044 today—designed for precision, durability, and reliable control in demanding industrial environments.
Frequently Asked Questions
Where can I buy ITW-Switches H48M213G4044?
You can click on the BUY or RFQ button to purchase H48M213G4044 from an authorized ITW-Switches distributor.
How do I troubleshoot issues or seek technical support for part H48M213G4044?
You can download the H48M213G4044 datasheet or visit the ITW-Switches website for support.
Who is the manufacturer of H48M213G4044?
ITW-Switches
