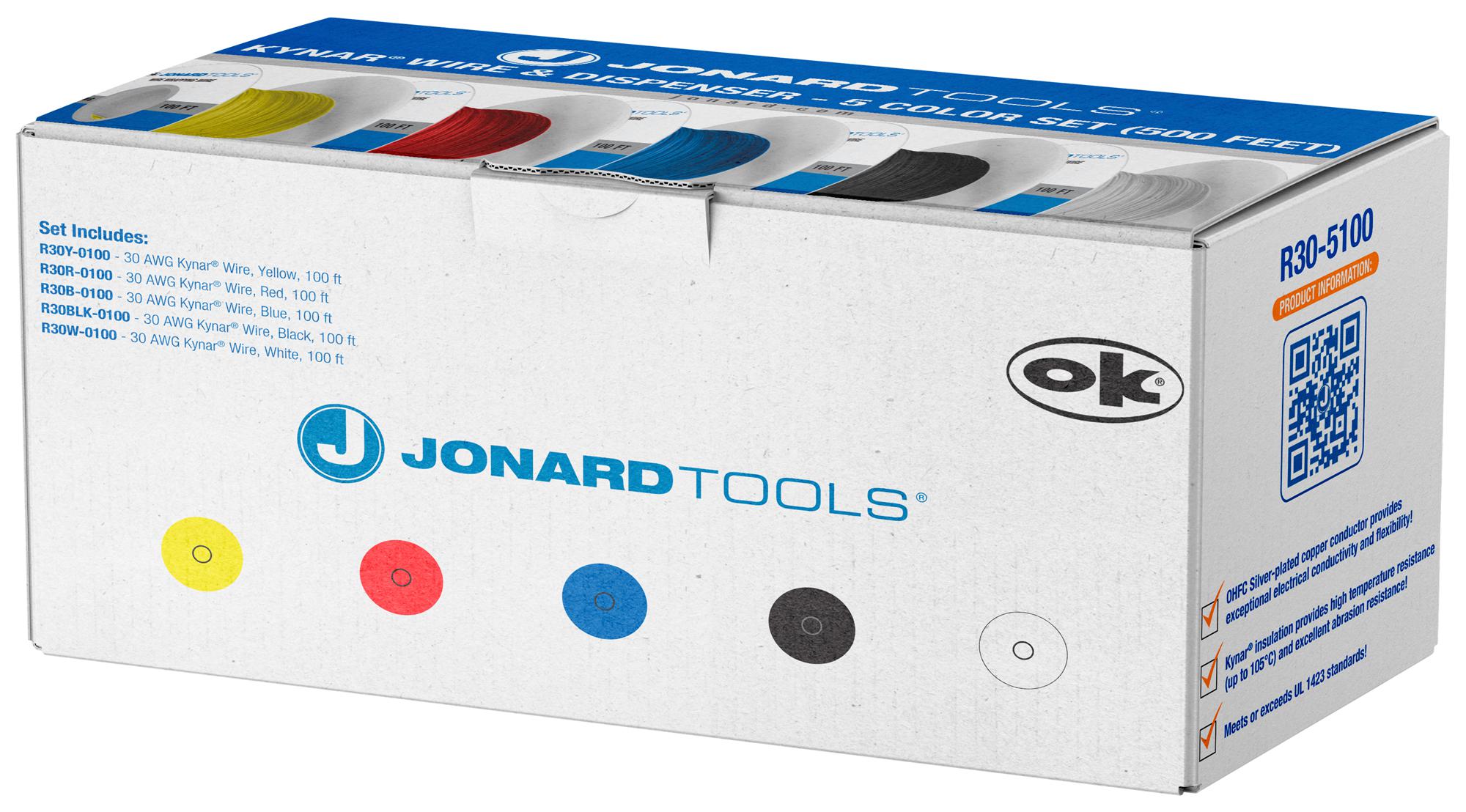

JONARD TOOLS R305100 Kynar Wire
This 500-foot spools of 5-color Kynar® wire in a dispenser box are designed for applications requiring flexibility, strength, and lightweight properties. Ideal for wire wrap, power supply, medical, aerospace, and circuit board prototyping, this wire features a Kynar® insulation that offers excellent mechanical properties over a wide temperature range and resistance to numerous chemicals, including acids, bases, alcohols, halogenated solvents, and hydrocarbons. The OHFC silver-plated copper conductor provides exceptional electrical conductivity and flexibility. It meets or exceeds UL 1423 standards, making it suitable for even the harshest environmental conditions. The included dispenser box facilitates easy organization and storage.
JONARD TOOLS R305100 Kynar Wire Specifications:
- Wire Gauge: 30 AWG (0.25 mm)
- Insulation Type: Kynar®
- Insulation Thickness: 0.005 inch (0.127 mm)
- Overall Diameter: 0.020 inch (0.50 mm)
- Material: Silver plated copper conductor
- Temperature Resistance: Up to 105°C
- Chemical Resistance: acids, bases, alcohols, halogenated solvents, hydrocarbons
- Standards: UL 1423
- Length per spool: 100 feet (30.4 meters)
- Weight: 0.45 lb (204 grams)
- Dispenser Box: Included for organizing multiple spools
Buy the Buy Kynar Wire Part Number R305100 Online
Experience the convenience and reliability of buying Kynar wire online. This 5-color set includes five 100-foot spools of high-quality, lightweight, and chemically resistant wire ideal for aerospace, medical, and circuit prototyping. The dispenser box ensures easy storage and organization, making your work more efficient. Perfect for applications demanding high flexibility, durability, and resistance to harsh environments, this kit provides exceptional electrical performance with a silver-plated copper conductor and UL 1423 compliance. Order now for your next project.
Get Kynar wire in a dispenser box today—designed for high-temperature resistance, chemical resistance, and flexible performance in demanding applications.
Frequently Asked Questions
Where can I buy JONARD TOOLS R305100?
You can click on the BUY or RFQ button to purchase R305100 from an authorized JONARD TOOLS distributor.
How do I troubleshoot issues or seek technical support for part R305100?
You can download the R305100 datasheet or visit the JONARD TOOLS website for support.
Who is the manufacturer of R305100?
JONARD TOOLS
