JST (JAPAN SOLDERLESS TERMINALS) PAP13VS Connector Series
The product is a versatile series of connectors designed for various wiring and circuit applications, featuring options like crimp style, IDC style, and retainer-mounted configurations. It includes wire-to-board, wire-to-wire, and through-hole types, with secure locking mechanisms, high-reliability contacts, and compatibility with AWG #22 to #28 wires. Manufactured from UL94V-0 rated materials, these connectors support applications requiring voltage up to 250V AC/DC and current ratings up to 3A, suitable for complex wire harnesses in electronic devices and automation systems.
JST (JAPAN SOLDERLESS TERMINALS) PAP13VS Connector Series Specifications:
- Current rating: 3A AC/DC (AWG #22), 1.0A AC/DC (AWG #26 for PAF connectors)
- Voltage rating: 250V AC/DC (standard type) with options for 100V for retainer-mountable types
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10-15mΩ max, post environmental testing/20-25mΩ max
- Insulation resistance: ≥ 1000 MΩ
- Withstanding voltage: 800V AC/minute
- Applicable wire: AWG #28 to #22 or #26, detailed by model
- Housing material: PA 66, UL94V-0, natural (white), RoHS compliant
- Post material: Copper alloy, tin-plated (reflow treatment)
- Dimensions vary by model, typically in the range of 20-280mm in length, with compatible PCB thickness up to 1.6mm
- Locking mechanisms include secure locks, secondary retainers, and retainer-mount options
- Certifications: Recognized E60389, Certified LR20812, RoHS compliant

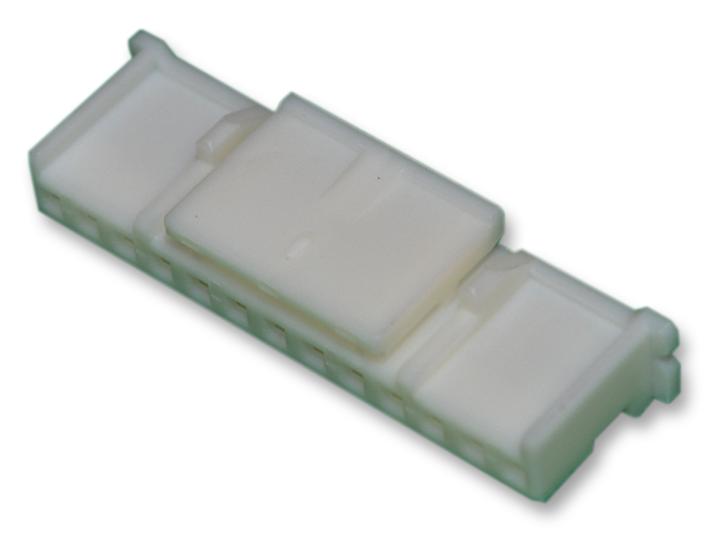

Buy the JST Series PAF Connector: PAP13VS
Order JST PAF connector PAP13VS online today to ensure high-quality, reliable connections for your electronic projects. Featuring secure locking, wide wire compatibility, and RoHS compliance, this connector series is ideal for complex wire harnesses, automation, and control systems. With options for crimp, IDC, and retainer mounting, you get versatile solutions that meet diverse application demands. Shop now to benefit from fast delivery, excellent durability, and the confidence of branded quality that enhances your assembly efficiency and product reliability.
Buy JST PAF connector named PAP13VS now and experience unmatched reliability and performance for your electronic wiring needs.
Frequently Asked Questions
Where can I buy JST (JAPAN SOLDERLESS TERMINALS) PAP13VS?
You can click on the BUY or RFQ button to purchase PAP13VS from an authorized JST (JAPAN SOLDERLESS TERMINALS) distributor.
How do I troubleshoot issues or seek technical support for part PAP13VS?
You can download the PAP13VS datasheet or visit the JST (JAPAN SOLDERLESS TERMINALS) website for support.
Who is the manufacturer of PAP13VS?
JST (JAPAN SOLDERLESS TERMINALS)
