JST 02DRNE8EP Electrical connector receptacle
This DR series 2.0mm connector receptacle with 2 positions is designed for compact electronic applications. It supports 28 AWG wire, rated for 100V, with a tin-plated contact surface ensuring reliable electrical connection. The blue housing facilitates quick identification and installation. Features include a twin U-slot insulation displacement section for dependable wiring, a foldable beam contact for enhanced spring strength, and strain relief to protect connections from vibration and impact. This ultra-compact connector suits VCRs, cameras, car stereos, and other miniaturized electronic devices, providing excellent durability and performance under various environmental conditions.
JST 02DRNE8EP Electrical connector receptacle Specifications:
- Pitch: 2.0mm
- Current rating: 1.0A AC/DC (AWG #26)
- Voltage rating: 100V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max, after testing/20mΩ
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 800V AC/minute
- Applicable wire: UL1571, 1061, AWG #28, #26, tin-coated, 7 strands
- Insulation O.D.: 0.9 to 1.0mm
- Applicable PC board thickness: 1.2 to 1.6mm
- Housing: PA 66, ULS4V-0, RoHS compliant
- Terminal material: Phosphor bronze, tin-plated, reflow treatment
- Housing color: Blue

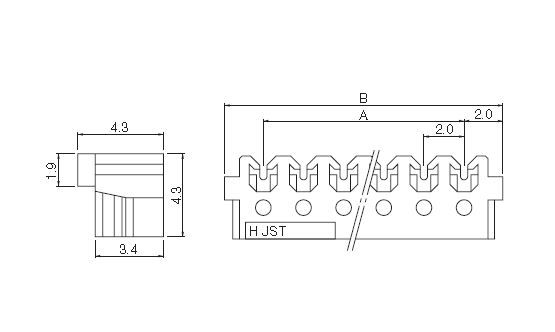

Buy the Buy JST DR Connector Part Number 02DRNE8EP Online
Enhance your electronic projects with this compact 2.0mm pitch connector. Designed for reliability, rated for 100V, it supports 28 AWG wire, with a tin-plated contact surface for durable connections. Its blue housing makes identification quick and easy. Features include twin U-slot insulation displacement for secure wiring, a foldable beam contact for extra spring strength, and strain relief to protect against vibration. Suitable for miniature devices like VCRs, cameras, and car stereos, this connector ensures stable and safe electrical connections in compact spaces.
Buy JST DR connector part number 02DRNE8EP now and experience unmatched reliability and performance in compact electronic connections.
Frequently Asked Questions
Where can I buy JST 02DRNE8EP?
You can click on the BUY or RFQ button to purchase 02DRNE8EP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 02DRNE8EP?
You can download the 02DRNE8EP datasheet or visit the JST website for support.
Who is the manufacturer of 02DRNE8EP?
JST
