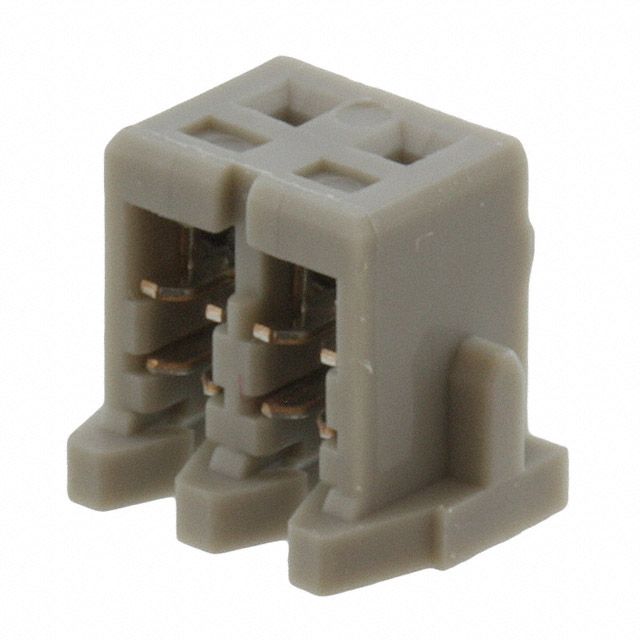

JST 02KR6HP Connector Socket
This 2-position connector socket from the KR Connector Series features a 2.0mm pitch and is suitable for electronic and wiring applications. It is compatible with 26 AWG wiring, featuring tin-plated contact surfaces for corrosion resistance. The connector has a gray housing, top entry type, and supports a current rating of 2A and a voltage rating of 250V. With a temperature range from -25°C to +85°C, it is reliable, RoHS compliant, and designed for high-density PCB mounting. Its compact design ensures easy integration in tight spaces and provides high reliability for wiring connections.
JST 02KR6HP Connector Socket Specifications:
- Pitch: 2.0mm
- Current rating: 2A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact Material: Copper alloy, tin-plated
- Housing Material: PA 66, UL94V-0
- Wire Compatibility: 26 AWG, 7 strands, tin-coated
- Applicable PCB Thickness: 0.8 to 1.6mm
- RoHS compliant
- Standards: Recognized E60389, Certified LR20812
Buy the JST Series HR 2.0mm Pitch Connector Socket: 02KR6HP
Purchase the JST 02KR6HP connector socket online today to ensure high-quality, corrosion-resistant connections for your electronic projects. With a 2.0mm pitch, compatibility with 26 AWG wiring, and a rated 2A, 250V, this connector offers dependable performance in tight spaces. Its tin-plated contacts and durable PA 66 housing ensure long-lasting durability and reliable signal transmission. Ideal for electronic assembly, wiring, and PCB applications, this connector is a crucial component for precise, secure electrical connections in various industrial and hobbyist projects.
Get JST 02KR6HP today—built for reliable electrical connections in compact designs and high-density PCBs.
Frequently Asked Questions
Where can I buy JST 02KR6HP?
You can click on the BUY or RFQ button to purchase 02KR6HP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 02KR6HP?
You can download the 02KR6HP datasheet or visit the JST website for support.
Who is the manufacturer of 02KR6HP?
JST
