JST 02RZWPVKNN waterproof connector
This is a 2-position waterproof connector receptacle assembly from the ZWP series, designed with a 1.5mm pitch and suitable for 28-24 AWG insulated copper wires. It offers reliable waterproof performance with an IPX7 rating, ensuring protection against water ingress. The connector operates at a voltage of 50V AC/DC and has a current rating of 2A. Crafted from tin-plated copper alloy, it features a robust construction with a PBT housing, silicone rubber sealing components, and adheres to RoHS2 standards. Ideal for applications requiring secure, waterproof electrical connections, it is compatible with crimping tools and features a compact, versatile assembly layout for multiple circuits.
JST 02RZWPVKNN waterproof connector Specifications:
- Pitch: 1.5 mm
- Wire Gauge: AWG #28 to #24
- Wire Insulation Diameter: 0.9 to 1.2 mm
- Voltage Rating: 50 V AC/DC
- Current Rating: 2 A
- Contact Resistance: Initial 10 mΩ max, After tests 20 mΩ max
- Insulation Resistance: 500 MΩ min.
- Withstanding Voltage: 500 VAC/minute
- Material: Copper alloy, tin-plated
- Housing Material: PBT, UL94V-0, black
- Seal Material: Silicone rubber, brown
- Waterproof Grade: IPX7
- Temperature Range: -25°C to +85°C
- RoHS2 Compliant
- Dimensions: Not specified
- Applicable Wire Range: AWG #28 to #24
- Insulation O.D.: 0.9 to 1.2 mm

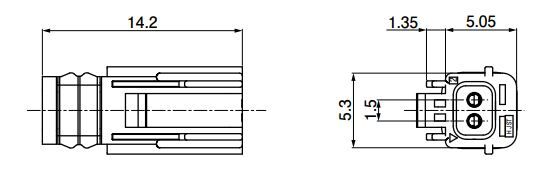

Buy the Buy JST ZWP Connector Part Number 02RZWPVKNN Online
Enhance your waterproof electrical setups with this high-quality 2-position waterproof connector from JST. Featuring a 1.5mm pitch, suitable for 28-24 AWG insulated copper wires, and rated IPX7 waterproof, it ensures reliable water-resistant connections. With a voltage capacity of 50V and a current rating of 2A, this connector is ideal for outdoor or moist environment applications. Crafted from durable, tin-plated copper and housed in a robust PBT shell with silicone rubber seals, it’s perfect for various industrial, automation, and electronic projects requiring secure, weatherproof connectivity.
Get JST ZWP Connector 02RZWPVKNN today—built for waterproof reliability and durable electrical connections.
Frequently Asked Questions
Where can I buy JST 02RZWPVKNN?
You can click on the BUY or RFQ button to purchase 02RZWPVKNN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 02RZWPVKNN?
You can download the 02RZWPVKNN datasheet or visit the JST website for support.
Who is the manufacturer of 02RZWPVKNN?
JST
