JST 03KRD6SP Insulation Displacement Connector
This 2.0mm pitch insulation displacement connector simplifies electronic wiring with daisy chaining and a low profile of 9.0mm height. Designed for easy PCB connections, it features twin slot IDC sections, distortion-resistant construction, and compatibility with AWG #26 and #28 wires. The connector supports currents up to 1.0A and voltages of 100V, with a temperature range from -25°C to +85°C. Made from durable materials, it is RoHS compliant and ideal for compact electronic systems requiring reliable, space-saving connections.
JST 03KRD6SP Insulation Displacement Connector Specifications:
- Pitch: 2.0mm
- Current rating: 1.0A AC/DC
- Voltage rating: 100V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: initial/10mΩ max, after testing/20mΩ max
- Insulation resistance: ≥ 1,000MΩ
- Withstanding voltage: 800V AC/min
- Applicable wire: UL1571, UL1061, AWG #26 and #28, 7 strands, tin-coated
- Insulation outer diameter: 0.9 to 1.0mm
- Applicable PCB thickness: 0.8 to 1.6mm
- Material: Contact made of phosphor bronze, tin-plated; Housing: PA 66, UL94V-0
- RoHS compliant
- Connector height: 9.0mm from PCB surface
- Standards: Recognized E60389, Certified LR20812

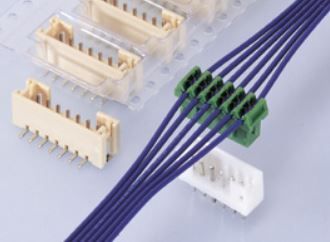

Buy the Buy JST KRD Connector Part Number 03KRD6SP Online
Acquire the JST KRD connector part number 03KRD6SP online today for quick and dependable PCB connections. Its insulation displacement technology ensures secure wiring with minimal effort, suitable for daisy chaining in electronic equipment. Featuring a 2.0mm pitch, low profile of 9.0mm height, and compatibility with AWG #26 and #28 wires, this connector delivers high performance in space-constrained environments. Made with durable materials and RoHS compliant, it guarantees lasting, corrosion-resistant electrical connections for industrial and consumer electronics.
Buy JST KRD connector part number 03KRD6SP now and experience reliable insulation displacement connections with space-saving design ideal for compact electronic systems.
Frequently Asked Questions
Where can I buy JST 03KRD6SP?
You can click on the BUY or RFQ button to purchase 03KRD6SP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 03KRD6SP?
You can download the 03KRD6SP datasheet or visit the JST website for support.
Who is the manufacturer of 03KRD6SP?
JST
