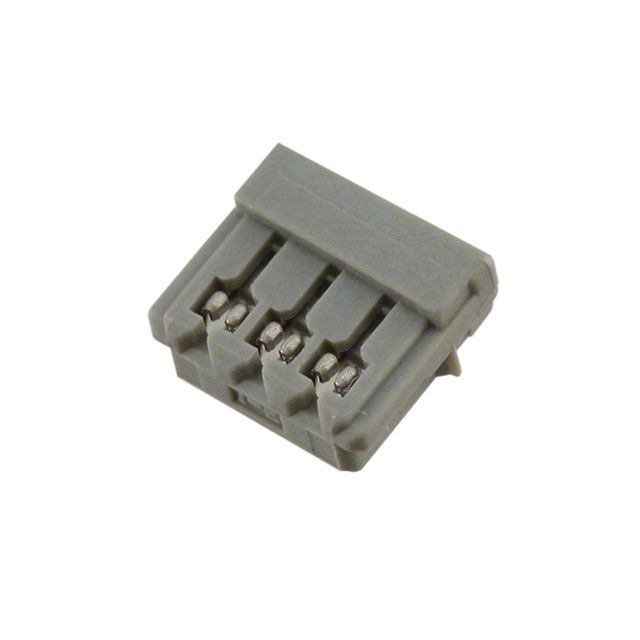

JST 03SSR32H Female Socket Connector
This JST SSR Series female socket connector with a 3-position configuration features a 1.00mm pitch and IDC termination compatible with 32 AWG wire gauge. Made of phosphor bronze and tin-plated for reliable conduction, it includes a gray PA housing with UL94V-0 flammability rating, suitable for electronic assembly and PCB connections. Designed for durability, it supports currents up to 0.5A AC/DC and voltages up to 50V. Ideal for compact, modular, and easy-to-assemble electronic circuits in various industrial and consumer electronics applications.
JST 03SSR32H Female Socket Connector Specifications:
- Current rating: 0.5A AC/DC
- Voltage rating: 50V AC/DC
- Temperature range: -25°C to +85°C
- Contact Material: Phosphor bronze, tin-plated
- Housing Material: PA 46, UL94V-0, gray
- Wire Gauge: 32 AWG, 7 strands, tin-coated annealed copper
- Insulation O.D.: 0.52 to 0.56mm
- Connector Pitch: 1.00mm
- Number of Positions: 3
- Standards: RoHS compliant, Recognized E60389
Buy the JST Series SSR Female Socket Connector: 03SSR32H
Purchase the JST SSR Series 03SSR32H female socket connector online today for your electronic assembly needs. With a 1.00mm pitch and IDC termination for 32 AWG wire, it ensures secure and reliable connections. Made from high-quality materials including phosphor bronze and UL94V-0 rated housing, this connector provides excellent durability in a compact design. Ideal for PCB terminations, modular circuits, and various industrial and consumer electronic applications, it offers easy installation, RoHS compliance, and consistent performance for your projects.
Buy JST SSR Series 03SSR32H connector now and experience reliable, easy-to-assemble electronic connections for your projects.
Frequently Asked Questions
Where can I buy JST 03SSR32H?
You can click on the BUY or RFQ button to purchase 03SSR32H from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 03SSR32H?
You can download the 03SSR32H datasheet or visit the JST website for support.
Who is the manufacturer of 03SSR32H?
JST
