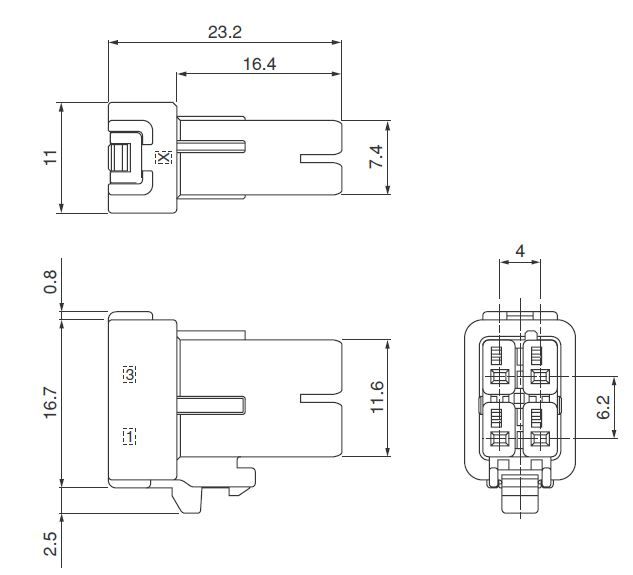

JST 04RJWPSVELEDZA Waterproof Connector Housing
This waterproof connector housing from the JWPS series is designed for 4 circuits with a 4.0mm pitch, offering high ingress protection (IPX7). It features a robust construction with a silicone rubber seal, housing-to-terminal locks, and mis-mating prevention keys. Made of glass-filled PBT with UL94V-0 rating and available in blue, it supports wires from 22 to 18 AWG with an outer diameter of 1.75mm to 2.5mm. Suitable for demanding electrical and industrial applications needing secure and waterproof connections.
JST 04RJWPSVELEDZA Waterproof Connector Housing Specifications:
- Current rating: 4 A AC, DC (AWG #22), 5 AAC, DC (AWG #20), 6 AAC, DC (AWG #18)
- Voltage rating: 300 V AC/DC
- Temperature range: -55°C to +85°C
- Applicable wire: AWG #22 to #18
- Insulation O.D.: 1.75 to 2.5 mm
- Waterproof grade: IPX7 (JIS C 0920 / IEC 60529)
- Housing material: Glass-filled PBT, UL94V-0, black, blue, or natural
- Seal rubber plate: Silicone rubber, light blue or brown
- Receptacle housing: Preassembled with seal ring holder and rubber seal
- Certifications: RoHS compliant, UL recognized, LR20812
- Reel quantity: 180 or 400 depending on model
- Contact material: Copper alloy, tin-plated
- Color: Blue housing, light blue or brown seals
- Model No.: 04RJWPSVELEDZA, 04T-JWPS-VKLE-DX-A1
Buy the JST Series Waterproof Connector: 4 Circuit IPX7 04RJWPSVELEDZA
Purchase the JST waterproof connector housing from our online store today. This reliable, IPX7-rated connector supports 4 circuits with a 4.0mm pitch and is ideal for secure electrical connections in demanding environments. Constructed from durable glass-filled PBT with UL94V-0 rating, it is compatible with wires from 22 to 18 AWG and features a silicone rubber seal for waterproof performance. Perfect for industrial, automation, or outdoor applications requiring robust and waterproof wiring solutions that ensure safety and long-term performance.
Get JST waterproof connector 04RJWPSVELEDZA today—built for durability and reliable electrical connections in harsh environments.
Frequently Asked Questions
Where can I buy JST 04RJWPSVELEDZA?
You can click on the BUY or RFQ button to purchase 04RJWPSVELEDZA from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 04RJWPSVELEDZA?
You can download the 04RJWPSVELEDZA datasheet or visit the JST website for support.
Who is the manufacturer of 04RJWPSVELEDZA?
JST
