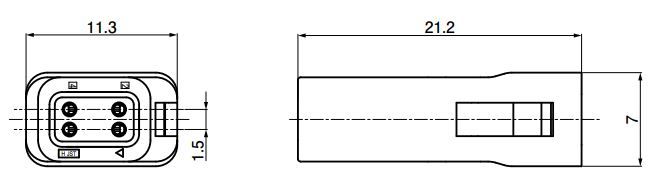

JST 04TZWPVWKNN Waterproof connector
This 4-position waterproof connector from the ZWP series features a 1.5mm pitch, suitable for 28-24 AWG insulated copper wires with tin plating. It offers reliable waterproof performance with Grade 7 ingress protection (IPX7) as per JIS C 0920 and IEC 60529 standards. Rated for 50V AC/DC and 2A current, it operates within -25°C to +85°C temperature range. The connector is made of PBT housing with silicone rubber seals, ensuring durability and environmental resistance. It’s ideal for industrial, automation, and electronic device applications needing secure water-resistant connections.
JST 04TZWPVWKNN Waterproof connector Specifications:
- Pitch: 1.5mm
- Number of positions: 4
- Rated Voltage: 50V AC/DC
- Rated Current: 2A
- Wire Range: AWG #28 to #24
- Applicable wire insulation diameter: 0.9 to 1.2mm
- Contact Material: Tin-plated copper alloy
- Contact Resistance: Initial max 10 mΩ, after environmental tests max 20 mΩ
- Insulation Resistance: 500 MΩ min.
- Withstanding Voltage: 500 VAC/minute
- Operating Temperature Range: -25°C to +85°C
- Ingress Protection: Grade 7 (IPX7)
- Housing Material: PBT, UL94V-0, black
- Sealing Material: Silicone rubber, brown
- RoHS2 Compliant
Buy the JST 04TZWPVWKNN – Reliable Waterproof Connector for Industrial Applications
Enhance your machinery or electronic systems with this waterproof connector designed for reliable water-resistant connections. Featuring a 1.5mm pitch and rated for 50V and 2A, it ensures secure wiring in harsh environments. Its Grade 7 ingress protection (IPX7) guarantees water tightness, making it ideal for demanding industrial applications. Constructed with durable materials such as PBT housing and silicone seals, this connector maintains performance under temperature variation from -25°C to +85°C. Perfect for automation, electronics, or manufacturing projects requiring dependable waterproof wire-to-wire connections.
Get JST waterproof connector today—built for water resistance and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy JST 04TZWPVWKNN?
You can click on the BUY or RFQ button to purchase 04TZWPVWKNN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 04TZWPVWKNN?
You can download the 04TZWPVWKNN datasheet or visit the JST website for support.
Who is the manufacturer of 04TZWPVWKNN?
JST
