JST 06DRNE6SP Insulation Displacement Connector

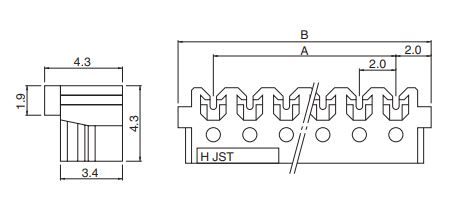

This DR Series connector receptacle with a 2.0mm pitch features 6 positions and is compatible with 26 AWG wire. Constructed with tin-plated contacts and a natural finish, it is rated for 100V and designed for reliable electronic connections. Its compact size, measuring 5.0mm in mounting height and 4.8mm in thickness, makes it ideal for miniaturized electronic equipment such as VCRs, cameras, and car stereo systems. The connector employs twin U-slot insulation displacement sections, folded beam contact construction, and strain relief to ensure durability and vibration resistance. It meets UL and RoHS standards, supporting applications requiring precise, secure connections.
JST 06DRNE6SP Insulation Displacement Connector Specifications:
- Pitch: 2.0mm
- Mounting Height: 5.0mm
- Thickness: 4.8mm
- Current Rating: 1.0A AC/DC (AWG #26)
- Voltage Rating: 100V AC/DC
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial/10mΩ max, After testing/20mΩ
- Insulation Resistance: 1,000MΩ min
- Withstanding Voltage: 800V AC/minute
- Applicable Wire: UL1571, 1061, AWG #28, #26, tin-coated, 7 strands
- Insulation Outer Diameter: 0.9-1.0mm
- Compatible PC Board Thickness: 1.2-1.6mm
- Material: Phosphor bronze contacts, tin-plated; housing PA 66, UL94V-0
- Standards: Recognized UL 60389, Certified LR20812
- RoHS compliant
Buy the JST 06DRNE6SP – Reliable Connector for Electronic Equipment
Order the JST 06DRNE6SP connector online today and ensure secure, reliable connections for your electronic projects. Its compact design, rated for 100V and 1A, features high-quality tin-plated contacts and insulation displacement technology, making it ideal for VCRs, cameras, and car stereos. With robust strain relief and adherence to UL and RoHS standards, this connector guarantees durability and safety. Simplify your assembly process by purchasing online and benefit from fast delivery, excellent customer support, and a trusted brand in electronic components.
Buy JST 06DRNE6SP now and experience unmatched reliability and performance in compact electronic connections.
Frequently Asked Questions
Where can I buy JST 06DRNE6SP?
You can click on the BUY or RFQ button to purchase 06DRNE6SP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 06DRNE6SP?
You can download the 06DRNE6SP datasheet or visit the JST website for support.
Who is the manufacturer of 06DRNE6SP?
JST
