JST 07FM10SP19TFLFSN FFC/FPC Connector
This side-entry FFC/FPC connector from the FM Connectors series features 7 positions and a 1.0mm pitch. Designed for high-density electronic applications, it offers reliable connection with a current rating of 0.5A and voltage capacity of 50V. The contact surface is tin-plated for enhanced conductivity and resistance to corrosion. Its compact size, just 4.4mm in height and 3.0mm in width, makes it ideal for space-constrained devices. Suitable for both through-hole and surface mount configurations, it ensures stable connections even under vibration. The connector complies with RoHS standards and withstands temperatures from -25°C to +85°C, providing durability for various environments.
JST 07FM10SP19TFLFSN FFC/FPC Connector Specifications:
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max. After environmental testing/30mΩ
- Insulation resistance: 800MΩ min.
- Withstanding voltage: 500V AC for 1 minute
- Applicable connector pitch: 1.0mm
- Applicable conductor width: 0.7mm
- Applicable PC board thickness: 0.8 to 1.6mm
- Housing: PBT, UL94V-0 (surface mount), heat resistant resin
- Contact material: Phosphor bronze, copper-undercoated, tin-plated
- Compliance: RoHS
- Dimensions: Mounting height 4.4mm, width 3.0mm
- Number of circuits: 7 positions
- Mounting types: through-hole and surface mount
- Rated for vibrations and impact stability
- Manufactured to UL and recognized standards

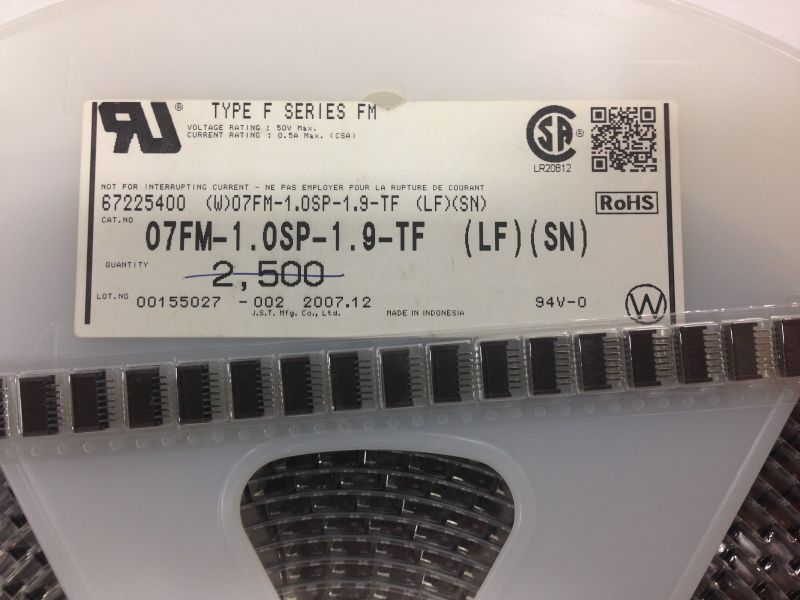

Buy the Buy Cooper FFC/FPC Connector Part Number 07FM10SP19TFLFSN Online
Secure your electronic designs with the reliable Cooper FFC/FPC connector, featuring a 1.0mm pitch and 7 circuits. Its compact size and high current capacity make it perfect for high-density applications. Easy to install with snap-in, this connector ensures stable electrical contact even under vibration. Suitable for both surface mount and through-hole mounting, it meets RoHS standards and operates efficiently between -25°C to +85°C. Order online today to enjoy fast delivery and high-quality connections for your electronic assemblies.
Buy Cooper 07FM10SP19TFLFSN now and experience reliable, space-saving connections with high durability for your electronic projects.
Frequently Asked Questions
Where can I buy JST 07FM10SP19TFLFSN?
You can click on the BUY or RFQ button to purchase 07FM10SP19TFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 07FM10SP19TFLFSN?
You can download the 07FM10SP19TFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 07FM10SP19TFLFSN?
JST
