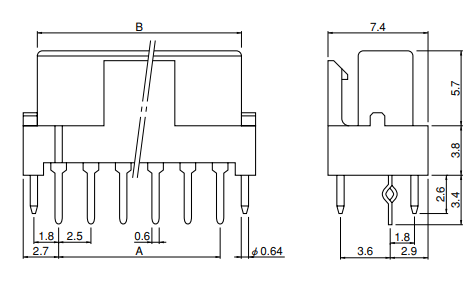

JST 07JLBTE board-to-board connector
This is a JL Series 2.5mm pitch board-to-board connector with a 7-pin receptacle. Designed for reliable two-pin connections in electronic assemblies, suitable for various modular applications. It features high contact pressure, a housing lock to ensure connection integrity after severe shock and vibration, reinforcing pins for increased PCB mounting durability, and polarization for proper alignment. Compliant with RoHS standards, this connector is ideal for high-density electronic equipment requiring secure and durable connections in industrial and consumer electronics.
JST 07JLBTE board-to-board connector Specifications:
- Current rating: 3A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: ≥ 1,000MΩ
- Withstanding voltage: 1,000V AC/minute
- Applicable PC board thickness: 1.6mm
- Material: Contact made of phosphor bronze, tin-plated; Housing of PA 66, UL94V-0, color varies by type
- Reinforcing pins: Brass, copper-undercoated, tin-plated
- RoHS compliant
- Number of circuits: 7
- Product series: JL Series
- Pitch: 2.5mm
Buy the JST 07JLBTE – Reliable 2.5mm Pitch Board-to-Board Connector for Industrial Applications
Discover the high-quality JL Series 2.5mm pitch board-to-board connector with a 7-pin receptacle. Designed to withstand shock and vibration, it ensures secure connections in electronic assemblies. Constructed with phosphor bronze contacts and reinforced housing of UL94V-0 rated PA 66 plastic, it offers durability and RoHS compliance. Ideal for industrial, automation, and consumer electronics, this connector features high contact pressure, polarization, and a locking mechanism for long-lasting performance. Purchase online today for dependable, high-density electronic connections.
Get JST 07JLBTE today—built for reliable, high-density electronic connections in modular applications.
Frequently Asked Questions
Where can I buy JST 07JLBTE?
You can click on the BUY or RFQ button to purchase 07JLBTE from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 07JLBTE?
You can download the 07JLBTE datasheet or visit the JST website for support.
Who is the manufacturer of 07JLBTE?
JST
