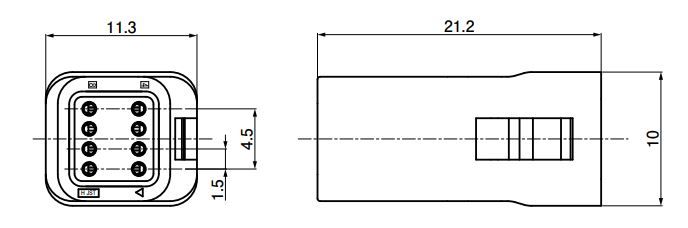

JST 08TZWPVWKNN Waterproof Connector
This 8-position waterproof connector from the ZWP series features a compact design with a 1.5mm pitch and an inner lock structure for secure connection. It offers excellent ingress protection at IPX7 (Grade 7) and is rated for 50V AC/DC and 2A current. Suitable for insulated copper wires from AWG 28 to 24, it is tin-plated for durability and corrosion resistance. The connector’s housing is made of black PBT with silicone rubber seals, making it ideal for demanding electrical and outdoor applications, ensuring safety and reliability in harsh environments.
JST 08TZWPVWKNN Waterproof Connector Specifications:
- Pitch: 1.5 mm
- Number of positions: 8
- Voltage rating: 50 V AC/DC
- Current rating: 2 A (AC/DC)
- Applicable wire: AWG 28 to 24, insulation O.D 0.9 to 1.2 mm
- Contact resistance: Initial 10 mQ max., after environmental tests 20 mQ max.
- Insulation resistance: 500 MQ min.
- Withstanding voltage: 500 VAC/minute
- Material: Copper alloy, tin-plated
- Housing material: PBT, UL94V-0, black
- Seal material: Silicone rubber, brown
- Ingress protection: Grade 7 (IPX7 IEC 60529)
- Temperature range: -25°C to +85°C
Buy the Buy Waterproof Connector Parts Series 08TZWPVWKNN Online
Discover the robustness and durability of this waterproof connector designed for reliable electrical connections in harsh conditions. Featuring a 1.5mm pitch and IPX7-grade ingress protection, it ensures safety and stability even in wet environments. Suitable for wires from AWG 28 to 24, with a voltage capacity of up to 50V and a current of 2A, the connector is tin-plated for corrosion resistance. Easy to install, it’s ideal for outdoor, industrial, and electronic applications requiring secure, waterproof connectors.
Buy JST waterproof connector model 08TZWPVWKNN now and experience unmatched reliability and performance in demanding environments.
Frequently Asked Questions
Where can I buy JST 08TZWPVWKNN?
You can click on the BUY or RFQ button to purchase 08TZWPVWKNN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 08TZWPVWKNN?
You can download the 08TZWPVWKNN datasheet or visit the JST website for support.
Who is the manufacturer of 08TZWPVWKNN?
JST
