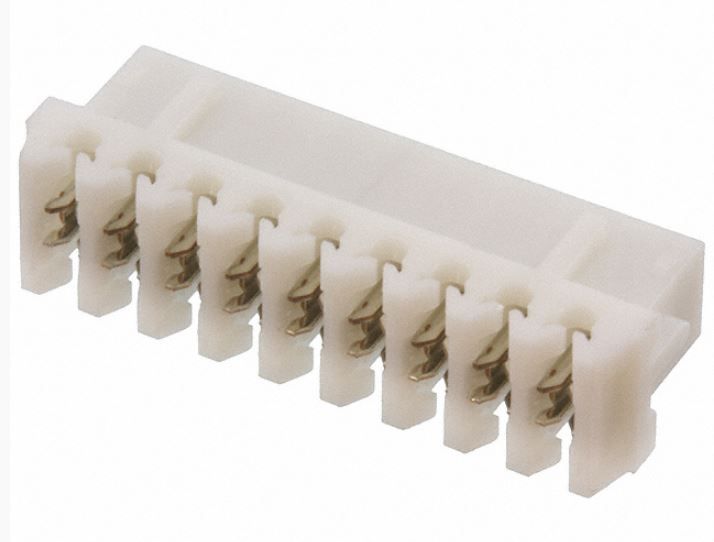

JST 09KRD6SP connector socket
The 9-position connector socket from the KRD series features a 2.0mm pitch, designed for easy daisy chaining and simplified connections in electronic systems. It supports up to 26 AWG wire with tin-plated contact material, ensuring reliable electrical performance. The connector includes a single row of contacts, suitable for free hanging, right-angle installation on PC boards with a thickness of 0.8 to 1.6mm. It is RoHS compliant, withstands voltages up to 800V AC, and has a temperature range from -25°C to +85°C, making it ideal for compact and durable electronic connections.
JST 09KRD6SP connector socket Specifications:
- Pitch: 2.0mm
- Number of positions: 9
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 100V AC, DC
- Contact resistance: Initial/10mΩ max, after environmental testing/20mΩ max
- Insulation resistance: ≥ 1000MΩ
- Withstand voltage: 800V AC/minute
- Applicable wire: UL1571, UL1061, AWG #28, #26, conductor/7 strands, tin-coated
- Insulation diameter: 0.9 to 1.0mm
- PC board thickness: 0.8 to 1.6mm
- Housing material: PA 66, UL94V-0
- Contact material: Phosphor bronze, tin-plated
- Temperature range: -25°C to +85°C
- RoHS compliant
Buy the Buy JST KRD Series 09KRD6SP Part Number 09KRD6SP Online
Secure your electronic connections with the JST KRD series 9-position connector socket. Featuring a 2.0mm pitch and designed for right-angle PCB mounting, this connector supports 26 AWG wires with tin-coated contacts, ensuring reliable electrical performance. Its compact, RoHS-compliant design makes it ideal for space-constrained applications. With a temperature range of -25°C to +85°C and a withstand voltage of 800V AC, it offers durability and safety for various electronic assembly needs. Order online now for quick delivery.
Order your JST Series09KRD6SP connector today and ensure reliable, space-saving connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST 09KRD6SP?
You can click on the BUY or RFQ button to purchase 09KRD6SP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 09KRD6SP?
You can download the 09KRD6SP datasheet or visit the JST website for support.
Who is the manufacturer of 09KRD6SP?
JST
