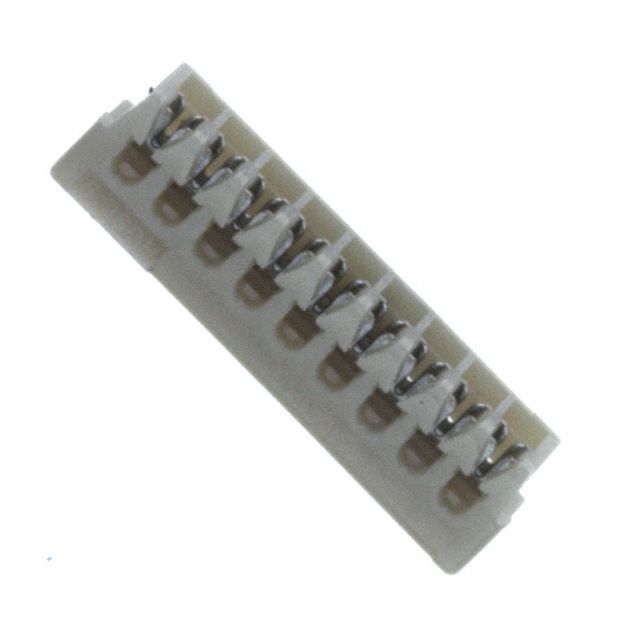

JST 09SR3S SR Series Connector
This 9-position free-hanging connector receptacle is part of the SR Series, designed for quick and reliable connections with a 1.00 mm pitch suitable for 30 AWG wires. Its compact design features a tin-plated finish for enhanced corrosion resistance and a natural color housing made of ULS4V-0 rated PBT. Certified RoHS compliant, it supports a 0.7A current at 50V DC, with excellent environmental resistance. Ideal for electronics and automation projects, it provides a durable, precise, and easy-to-assemble solution for high-density applications.
JST 09SR3S SR Series Connector Specifications:
- Current rating: 0.7A at 50V DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value 20mΩ max, after environmental testing 40mΩ max
- Insulation resistance: Min. 100MΩ
- Withstanding voltage: 500V AC for 1 minute
- Applicable wire: Conductor size/AWG #30, 7 strands, tin-coated annealed copper
- Insulation OD: 0.54 to 0.58mm
- Housing material: ULS4V-0 rated PBT, natural color
- Contact material: Phosphor bronze, tin-plated
- RoHS compliant
Buy the JST Series SR Connector: 09SR3S
Purchase the JST Series SR connector 09SR3S online today and enhance your electronic assembly with a high-quality, easy-to-install connector. Offering a compact design with 1.00 mm pitch, it supports 30 AWG wires and is ideal for robotics, automation, and electronic modules. The tin-plated contact ensures corrosion resistance, while the RoHS compliance guarantees environmentally safe operation. Our online ordering process is quick, ensuring you receive this reliable connector fast, so you can complete your projects with confidence and efficiency.
Order your JST Series SR connector 09SR3S today and secure a reliable, compact connection for your electronic or automation project.
Frequently Asked Questions
Where can I buy JST 09SR3S?
You can click on the BUY or RFQ button to purchase 09SR3S from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 09SR3S?
You can download the 09SR3S datasheet or visit the JST website for support.
Who is the manufacturer of 09SR3S?
JST
