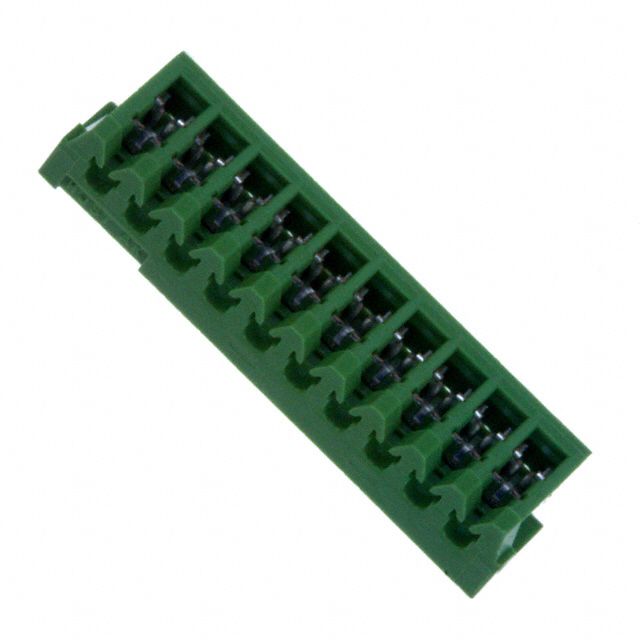

JST 10ZR8MP IDC Connector
This is a 10-position IDC connector from the ZR Series, featuring a 1.50mm pitch and a 1-row female socket. Designed for 28 AWG wires, it offers a reliable connection with twin U-slots, 3-point grip construction, and distortion-resistant features, ensuring performance even under severe environmental conditions. Suitable for PCB mounting with adjustable PC board thickness options of 0.6 to 1.2mm and 1.6mm. Made with phosphor bronze contacts, tin-plated, housed in UL94V-0 glass-filled PA66, and compliant with RoHS standards. The connector supports AC/DC current ratings of 0.7A and voltage of 50V.
JST 10ZR8MP IDC Connector Specifications:
- Current rating: 0.7A AC, DC for AWG #28
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Wire: UL1571, 7 strands, tin-coated, AWG #28
- Insulation O.D.: 0.7 to 0.8mm
- Applicable PC board thickness: 0.6 to 1.2mm, 1.6mm
- Insulation resistance: 500MΩ min.
- Withstanding voltage: 500V AC/minute
- Shell: Glass-filled PA 66, UL94V-0
- Contact material: Phosphor bronze, tin-plated
- RoHS compliant
- Connector pitch: 1.50mm
- Number of positions: 10
- Color: Green
- Standards recognized: E60389, LR20812
Buy the Buy JST ZR Connector Part Number 10ZR8MP Online
Purchase the JST ZR IDC connector 10ZR8MP online to ensure high-quality, reliable connections for your projects. This 10-position connector features a 1.50mm pitch, designed for 28 AWG wires, with twin U-slots, 3-point grip, and distortion resistance. Its green housing, phosphor bronze contacts, and UL94V-0 rated material make it suitable for demanding environments. Ideal for PCB assembly, with adjustable thickness support up to 1.6mm, RoHS compliance, and certified for safety and performance. Order now to streamline your wiring needs with trusted JST quality.
Buy JST ZR connector 10ZR8MP now and experience reliable performance with compact design and distortion-resistant construction for professional applications.
Frequently Asked Questions
Where can I buy JST 10ZR8MP?
You can click on the BUY or RFQ button to purchase 10ZR8MP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 10ZR8MP?
You can download the 10ZR8MP datasheet or visit the JST website for support.
Who is the manufacturer of 10ZR8MP?
JST
