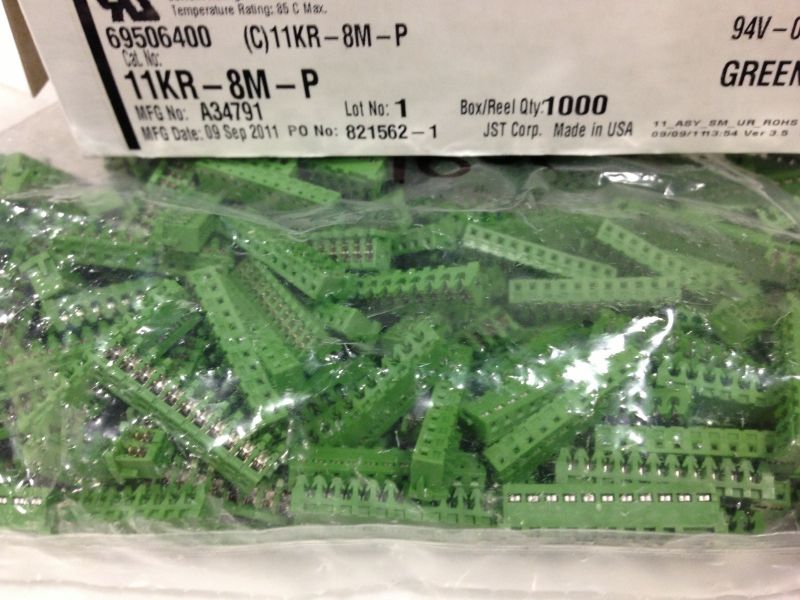

JST 11KR8MP Connector Socket
This KR Series 11-position connector socket with a 2.0mm pitch is rated for 100V and compatible with 28-26 AWG wire. Features include tin-plated contacts, a compact design with a low height of 6.9mm, and insulation displacement technology for easy wiring. Suitable for interconnecting electronic devices such as VCRs, cameras, and communication equipment, it offers reliable strain relief and RoHS compliance. The connector supports both top and side entry mounting and is ideal for panel thicknesses of 0.8 to 1.6mm, ensuring versatile installation in industrial applications.
JST 11KR8MP Connector Socket Specifications:
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 100V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial / 10mΩ max., After environmental testing / 20mΩ max.
- Insulation resistance: ≥ 1,000MΩ
- Withstanding voltage: 800V AC/minute
- Applicable wire: UL1571, 1061 (AWG #28, #26)
- Contact material: Tin-plated phosphor bronze
- Connector height: as low as 6.9mm
- Insulation O.D.: 0.9 to 1.0mm
- Applicable panel thickness: 0.8 to 1.6mm
- RoHS compliant
- Mounting options: Surface mount (SMT), through-hole, top entry, side entry
- Standards: Recognized E60389, Certified LR20812
Buy the JST KR-11KR8MP – Reliable Connector for Industrial Applications
Secure your electronic projects with the JST KR Series connector socket. Rated for 100V and compatible with 28-26 AWG wire, it features tin-plated contacts for durability and RoHS compliance for environmental safety. Its compact design with a height as low as 6.9mm ensures easy installation in limited space. Suitable for interconnecting devices like VCRs, cameras, and communication equipment, this connector provides reliable strain relief and versatile mounting options, making it ideal for industrial and electronics applications. Purchase online today for efficient connectivity solutions.
Buy JST KR-11KR8MP connector now and experience unmatched reliability and performance for electronic interconnections.
Frequently Asked Questions
Where can I buy JST 11KR8MP?
You can click on the BUY or RFQ button to purchase 11KR8MP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 11KR8MP?
You can download the 11KR8MP datasheet or visit the JST website for support.
Who is the manufacturer of 11KR8MP?
JST
