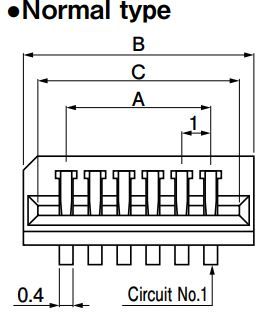

JST 12FMNBMTATFTLFSN Surface Mount FFC Connector
This 12-position, 1 mm pitch surface-mount FFC connector is ideal for compact electronic assemblies requiring reliable data and power transmission. It features a vertical design with embossed tape for automatic placement, supporting a current rating of 0.5A DC and a voltage rating of 50V DC. Constructed from phosphor bronze with tin-plated contacts and durable PBT housing, it offers high insulation resistance and withstand voltage, certified for RoHS compliance. Suitable for applications with conductor pitch of 1.0mm, conductor width of 0.7mm, and PC board thickness of 1.6mm, this connector ensures secure connection in space-constrained environments.
JST 12FMNBMTATFTLFSN Surface Mount FFC Connector Specifications:
- Number of Circuits: 12
- Pitch: 1.0mm
- Current Rating: 0.5A DC
- Voltage Rating: 50V DC
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial/30mΩ max, After environmental testing/50mΩ max
- Insulation Resistance: 500MΩ min
- Withstanding Voltage: 500V AC/min
- Material: Contact - Phosphor Bronze, Copper-undercoated, Tin-plated; Housing - PBT, UL94V-0
- Housing Color: Gray (Normal), Black (Reverse)
- Solder Tab: Brass, Copper-undercoated, Tin-plated
- RoHS Compliant
- Applicable FFC: Conductor Pitch - 1.0mm, Conductor Width - 0.7mm, Mating Part Thickness - 0.3±0.05mm
- Applicable PCB Thickness: 1.6mm
- Packaging: Embossed tape for automatic mounting
Buy the JST 12FMNBMTATFTLFSN – Reliable Surface Mount FFC Connector for Electronic Assemblies
Secure your electronic projects with the JST 12FMNBMTATFTLFSN 12-position, 1mm pitch surface-mount FFC connector. Featuring embossed tape for automatic placement, rated 0.5A/50V, and constructed from durable materials, it ensures high insulation resistance and reliable data transmission. Compatible with conductor width of 0.7mm and PCB thickness of 1.6mm, this connector is ideal for compact electronic assemblies needing space-efficient connectivity. Elevate your manufacturing process by purchasing this high-quality connector online today, and ensure flawless electronic performance in your devices.
Buy JST 12FMNBMTATFTLFSN now and experience unmatched reliability and performance in space-saving electronic connector solutions.
Frequently Asked Questions
Where can I buy JST 12FMNBMTATFTLFSN?
You can click on the BUY or RFQ button to purchase 12FMNBMTATFTLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 12FMNBMTATFTLFSN?
You can download the 12FMNBMTATFTLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 12FMNBMTATFTLFSN?
JST
