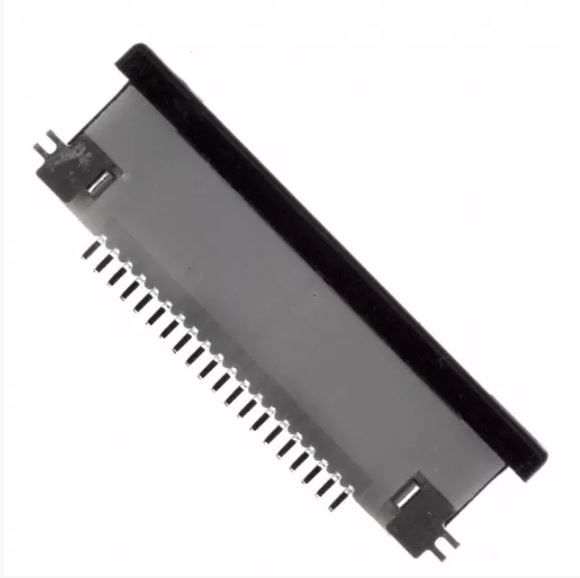

JST 20FLZSM2TBLFSN Surface Mount Connector
The FLZ Series 20-position surface mount connector header features a 0.5mm pitch with a slide lock mechanism. It is rated for 50V, made with tin plating, and comes in a natural finish, suitable for secure and reliable electronic connections. It employs a zero insertion force design with heat-resistant materials suitable for surface mounting, providing excellent contact resistance and insulation resistance. Designed for FFC and FPC applications, it meets RoHS standards and offers a compact solution for high-density PCB interconnections in various electronic devices.
JST 20FLZSM2TBLFSN Surface Mount Connector Specifications:
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/40mΩ max, after environmental testing/60mΩ max
- Insulation resistance: 800MΩ min
- Withstanding voltage: 200V AC/minute
- Applicable FFC and FPC: pitch 0.5mm, conductor width 0.35mm, thickness 0.3+0.03mm
- Material: Phosphor bronze contact, tin-plated; PA 6T housing, UL94V-0
- RoHS compliant, suitable for surface mounting with embossed tape
- Includes a slide lock mechanism for secure connection
Buy the JST 20FLZSM2TBLFSN – Reliable Surface Mount Connector for Industrial Applications
Purchase the JST surface mount connector today for your electronic projects. Designed with precision, it offers reliable contact, RoHS compliance, and ease of automated mounting. Its compact size and secure slide lock make it perfect for space-constrained applications, ensuring dependable connections in consumer electronics, industrial equipment, and FPC/FFC assemblies. Built with durability and high performance in mind, this connector supports high-density PCB design, making it an essential component for modern electronic manufacturing and development needs.
Get JST 20FLZSM2TBLFSN today—built for secure, high-density electronic connections in compact electronic devices.
Frequently Asked Questions
Where can I buy JST 20FLZSM2TBLFSN?
You can click on the BUY or RFQ button to purchase 20FLZSM2TBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 20FLZSM2TBLFSN?
You can download the 20FLZSM2TBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 20FLZSM2TBLFSN?
JST
