JST 22FMZBTLFSN FFC Connector
The FMZ series top entry connector is designed for flat flexible cable (FFC) with 22 positions and a 1.0mm pitch, offering reliable zero insertion force connection. Made with phosphor bronze contacts, tin-plated and housed in UL94V-0 glass-filled PBT, it is suitable for high-density applications. Capable of handling 0.5A current and 50V voltage, it operates within -25°C to +85°C. Its compact design ensures durability and stable electrical contact, ideal for space-constrained electronic assemblies requiring RoHS compliance.
JST 22FMZBTLFSN FFC Connector Specifications:
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/20mΩ max, environmental/30mΩ max
- Insulation resistance: 800MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable FFC: Pitch 1.0mm, width 0.7mm, thickness 0.3±0.05mm, 6-30 circuits
- Applicable PCB thickness: 0.8 to 1.6mm
- Housing material: Glass-filled PBT, UL94V-0
- Contact material: Phosphor bronze, tin-plated
- RoHS: Compliant

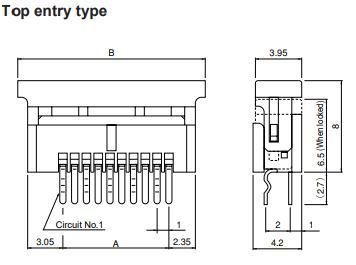

- Dimensions (mm): Top entry type 5.0 x 12.0 for 6 circuits to 29.0 x 36.0 for 30 circuits
Buy the JST 22FMZBTLFSN – Reliable FFC Connector for Industrial Applications
Order the JST 22FMZBTLFSN FFC connector online now to ensure you receive a high-quality, RoHS-compliant device designed for easy zero insertion force connections. This compact and durable connector is ideal for space-constrained assemblies requiring reliable electrical contact at 50V and 0.5A. With a 1.0mm pitch and 22 circuits, it provides excellent performance for flexible cable connections in various electronic devices. Buy today for fast delivery and superior connection quality in your industrial applications.
Buy JST 22FMZBTLFSN now and experience unmatched reliability and performance in high-density electronic connections.
