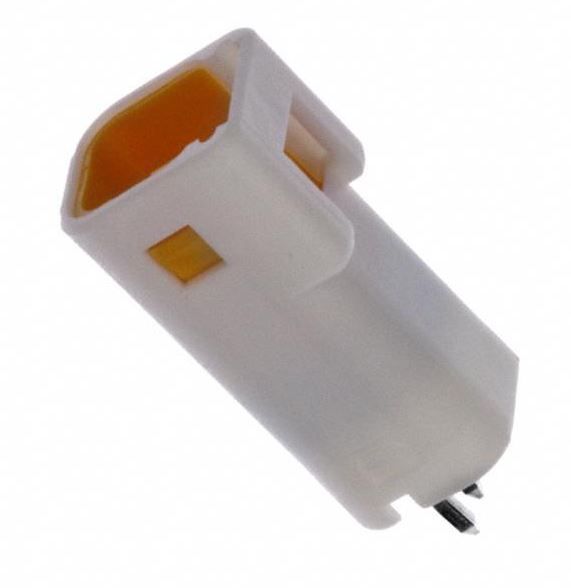

JST B02BJWPFSKRLFSN Waterproof Connector Housing
This waterproof connector housing from the JWPF series offers a reliable two-position connection with a 2.0mm pitch, suitable for applications up to 100V. Manufactured from UL94V-0 PBT, it features a natural color finish, designed for durability and environmental resistance. The connector includes a seal ring, rubber seal, and has an ingress protection rating of IPX7, ensuring protection against water ingress. It is compatible with wire sizes from AWG #26 to #22, with a current rating of 3A and withstand voltage of 1,000 VAC. Ideal for waterproof electrical and electronic projects requiring robust, corrosion-resistant connections.
JST B02BJWPFSKRLFSN Waterproof Connector Housing Specifications:
- Current rating: 3 A AC, DC
- Voltage rating: 100 V AC, DC
- Temperature range: -55°C to +85°C
- Contact resistance: Initial/10 mΩ max, after environmental tests/15 mΩ max
- Insulation resistance: 1,000 MΩ minimum
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #26 to #22
- Wire insulation O.D.: 1.4 to 1.7 mm
- Waterproof grade: IPX7 (IEC 60529)
- Housing material: PBT, UL94V-0, white
- Dimensions: Designed for 2.0 mm pitch; suitable for through-hole mounting; natural color
- Seal features: Contained seal ring, rubber seal, housing-to-terminal locks, inner-housing lock
- Standards: RoHS compliant, IPX7 waterproof protection
- Contact material: Copper alloy tin-plated (reflow treatment)
Buy the Buy JST JWPF Connector Part Number B02BJWPFSKRLFSN Online
Purchase the JST JWPF waterproof connector housing online today to ensure durable, water-resistant connections for your electrical and electronic applications. This 2-position connector features a 2.0mm pitch, IPX7 waterproof protection, and is constructed from flame-retardant UL94V-0 PBT material. It supports wire sizes from AWG #26 to #22, with a current rating of 3A and withstand voltage of 1,000 VAC. Perfect for environments where waterproof and secure electrical connections are critical, it guarantees long-lasting performance and environmental resistance.
Get JST JWPF connector part number B02BJWPFSKRLFSN today—designed for waterproof applications with high durability and reliable electrical connectivity.
Frequently Asked Questions
Where can I buy JST B02BJWPFSKRLFSN?
You can click on the BUY or RFQ button to purchase B02BJWPFSKRLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B02BJWPFSKRLFSN?
You can download the B02BJWPFSKRLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B02BJWPFSKRLFSN?
JST
