JST B04BXASK1ALFSN Connector Header
This is a 4-position, 1-row connector header from the XA1 Series, featuring a 2.5mm pitch for reliable connections. It offers through-hole mounting options, including press-fit or solder types, with a robust shrouded design for enhanced durability. The connector includes a secure locking ramp with a boss for stable attachment and is made from high-quality materials like copper alloy and glass-filled PA 66. Suitable for use in automation and electronic applications, it complies with RoHS standards and ensures excellent electrical performance across -25°C to +85°C temperature range.
JST B04BXASK1ALFSN Connector Header Specifications:
- Current rating: 3A AC/DC
- Voltage rating: 250V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10m Ω max, after testing/20m Ω max
- Insulation resistance: ≥ 1,000M Ω
- Withstanding voltage: 1,000V AC/minute
- Applicable wire: AWG #28 to #20
- Applicable PCB thickness: 1.6mm
- Material: Copper alloy, tin-plated with reflow treatment
- Connector body: Glass-filled PA 66, UL94V-0, natural color

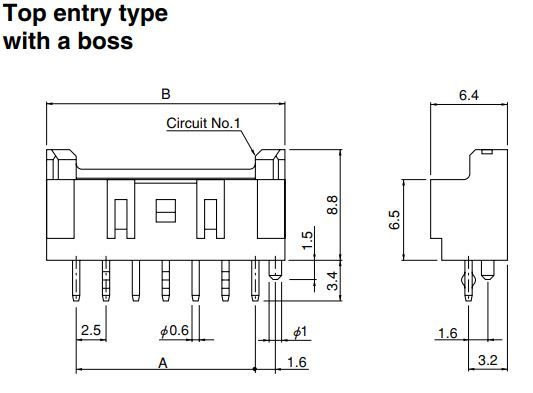

- Dimensions (A x B): Refer to specific model chart
- RoHS compliant, with secure locking device and polarizing boss
- Suitable for automatic board mounting and certified LR20812 machine
- Includes options for top entry and side entry types, with or without bosses
Buy the JST Series XA1 Connector Header 4-Position: B04BXASK1ALFSN
Get your JST Series XA1 Connector Header now online and enjoy fast delivery. Perfect for PCBs in automation and electronics, this durable, RoHS-compliant connector ensures stable, secure connections with a 2.5mm pitch, shrouded design, and locking ramp for enhanced stability. Suitable for through-hole mounting, it accommodates various wire sizes and is ideal for high-performance industrial applications. Purchase today to streamline your assembly process and ensure reliable electrical contacts in your projects.
Order your JST Series XA1 4-Position Connector Header today and secure reliable connections for your electronic projects with high-quality, RoHS-compliant components.
Frequently Asked Questions
Where can I buy JST B04BXASK1ALFSN?
You can click on the BUY or RFQ button to purchase B04BXASK1ALFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B04BXASK1ALFSN?
You can download the B04BXASK1ALFSN datasheet or visit the JST website for support.
Who is the manufacturer of B04BXASK1ALFSN?
JST
